JUNG Hebe- und Transporttechnik GmbH
Transport trolley JFB 60 H Professional - NEW
Power and stability - the JLB 40 H transport trolley from JUNG can lift loads of up to 40 t with an installation height of 230 mm.
Load capacity: 60 t (in a set 120 t*)
Height: 230 mm
Transport trolleys series H professional
*) Set consisting of JLB 60 H + JFB 60 H
Height: 230 mm
Transport trolleys series H professional
*) Set consisting of JLB 60 H + JFB 60 H
Product number:
10 601 206-H
Weight:
372 kg
Product information "Transport trolley JFB 60 H Professional - NEW"
Features of the JUNG Transport trolleys JLB 60 H Professional
- Despite their high load-bearing capacity, the transport trolleys feature a compact and lightweight design.
- The newly developed transport trolley with a reduced number of rollers allows for a space-saving construction while maintaining the same load capacity – made possible by state-of-the-art roller technology.
- The more compact design and reduced number of rollers result in a significant weight reduction.
- By halving the roller width and doubling the number of rollers, steering is noticeably improved and frictional forces during cornering are significantly reduced.
- The mechanical pendulum suspension of the cassettes or axles ensures uniform load distribution across the rollers and the floor surface – eliminating the need for a complex and failure-prone hydraulic leveling system.
- All transpot trolleys are delivered pre-assembled and are ready for immediate use.
JUNG transport trolleys are fitted with ball-bearing rollers for smooth and effortless movement. The rollers come standard with a low-wear tread.

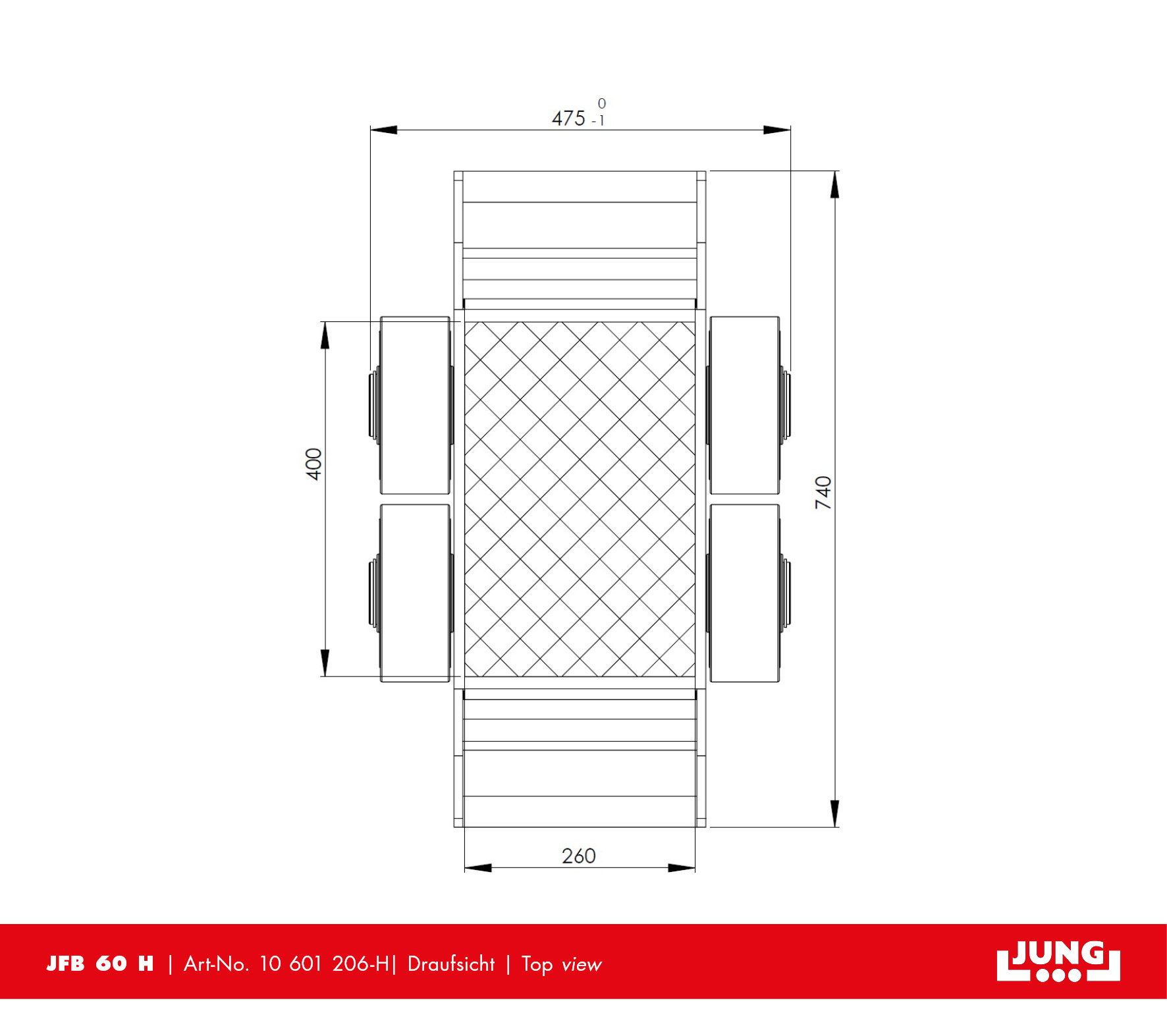

| Cassette dimensions (mm): | 740 x 475 |
|---|---|
| Cassettes adjustable from - to (mm): | 700 - 1 500 |
| Castor dimensions (Ø x l mm): | 200 x 85 |
| Connecting bar with joint (mm): | 2 x 1 540 |

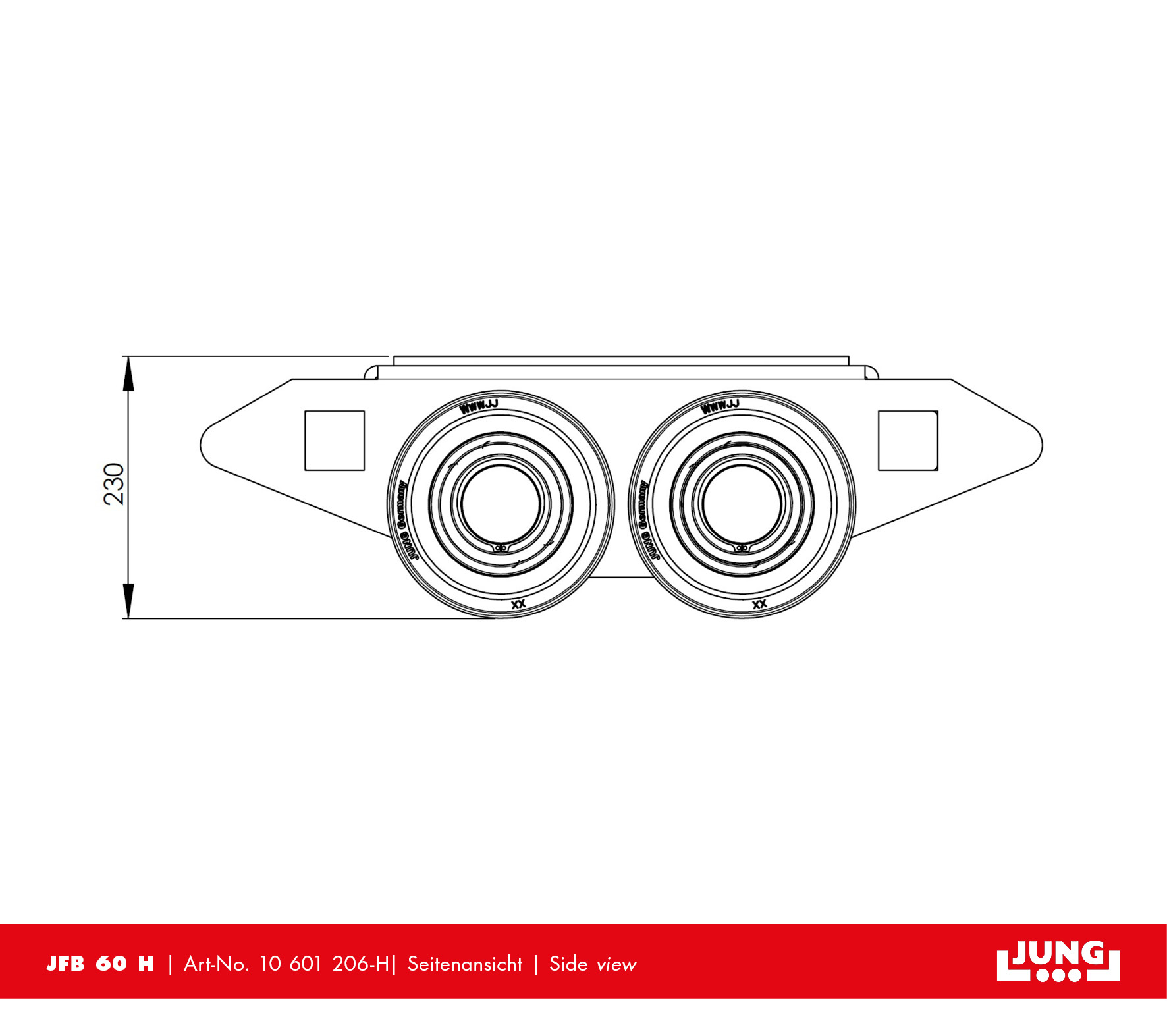

| Height (mm): | 230 |
| Load capacity (t): | 2 x 30 |
| Number of castors (Pieces): | 2 x 10 |
| Suppoting surface per cassette (mm): | 400 x 260 |
| Weight JUWAthan® (kg): | 372 |
