JUNG Hebe- und Transporttechnik GmbH
Steerable trolley JLB 60 H Professional - NEW
Engineered for power and stability: JUNG JLB 60 H Professional - NEW transport trolley can lift loads of up to 60 t with an installation height of 230 mm.
Load capacity: 60 t (in a set 120 t*)
Height: 230 mm
Transport trolleys series H professional
*) Set consisting of JLB 60 H + JFB 60 H
Height: 230 mm
Transport trolleys series H professional
*) Set consisting of JLB 60 H + JFB 60 H
Product number:
09 601 206-H
Weight:
385 kg
Product information "Steerable trolley JLB 60 H Professional - NEW"
Features of the JUNG Transport trolleys JLB 60 H Professional
- Despite their high load-bearing capacity, the transport trolleys feature a compact and lightweight design.
- The newly developed steering unit with a reduced number of rollers allows for a space-saving construction while maintaining the same load capacity – made possible by state-of-the-art roller technology.
- The more compact design and reduced number of rollers result in a significant weight reduction.
- By halving the roller width and doubling the number of rollers, steering is noticeably improved and frictional forces during cornering are significantly reduced.
- The mechanical pendulum suspension of the cassettes or axles ensures uniform load distribution across the rollers and the floor surface – eliminating the need for a complex and failure-prone hydraulic leveling system.
- All transpot trolleys are delivered pre-assembled and are ready for immediate use.
- The steering unit is equipped with a ball-bearing turntable and a tow bar with an integrated towing eye.
JUNG transport trolleys are fitted with ball-bearing rollers for smooth and effortless movement. The rollers come standard with a low-wear tread.
| Castor dimensions (Ø x l mm): | 200 x 85 |
|---|---|

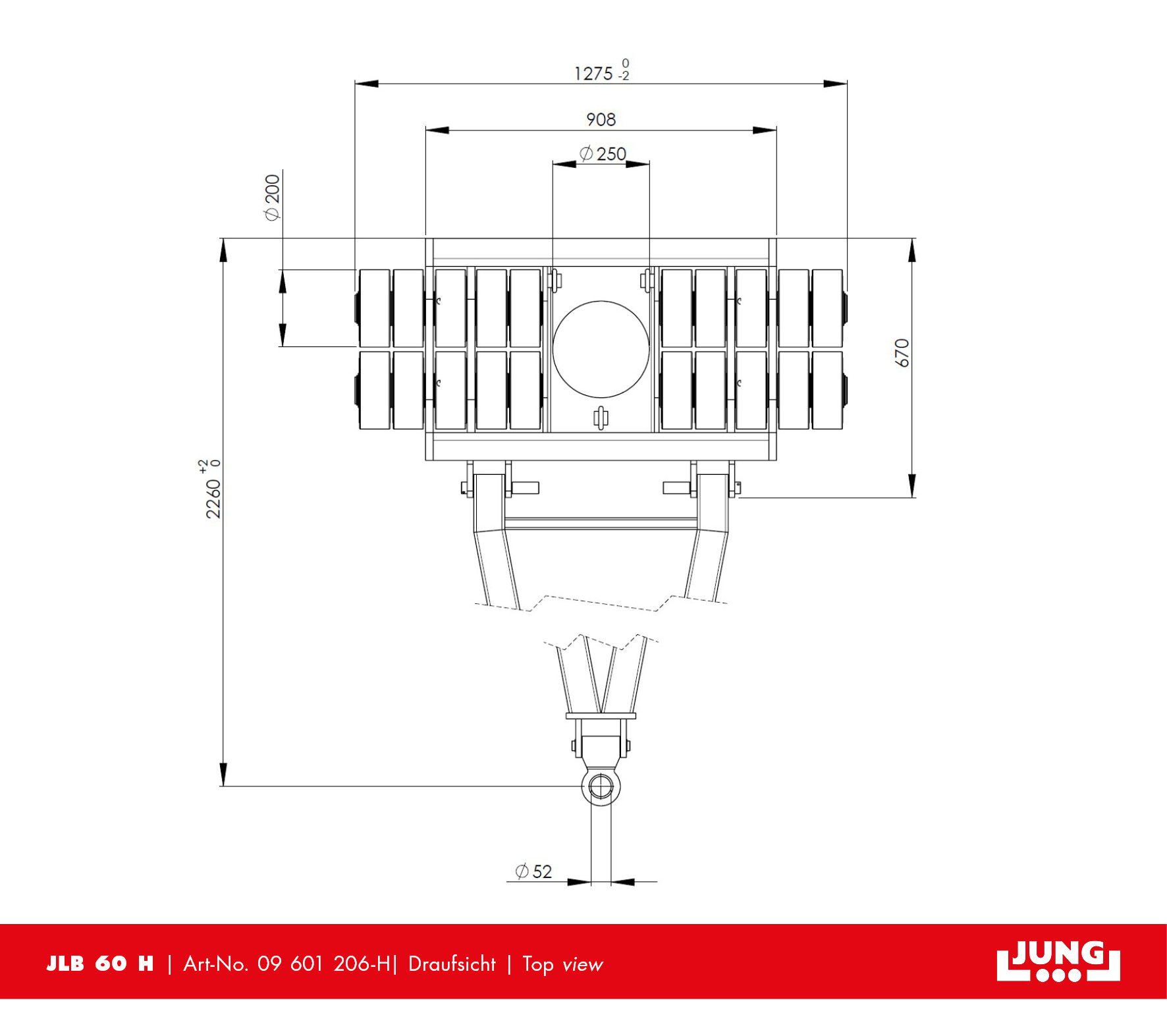

| Dimensions steerable (mm): | 670 x 1 275 |
| Handlebar with pulling eye (mm): | 1 600 |
| Height (mm): | 230 |
| Load capacity (t): | 40 |
| Number of castors (Pieces): | 20 |
| Supporting surface of turnable Ø (mm): | 250 |
| Weight JUWAthan® (kg): | 385 |
