JUNG Hebe- und Transporttechnik GmbH
Transport trolley JFB 40 H Professional - NEW
Power and stability - the JLB 40 H transport trolley from JUNG can lift loads of up to 40 t with an installation height of 230 mm.
Load capacity: 40 t (in a set 80 t*)
Height: 230 mm
Transport trolleys series H professional
*) Set consisting of JLB 40 H + JFB 40 H
Height: 230 mm
Transport trolleys series H professional
*) Set consisting of JLB 40 H + JFB 40 H
Product number:
10 401 206-H
Weight:
270 kg
Product information "Transport trolley JFB 40 H Professional - NEW"
Features of the JUNG Transport trolleys JFB 40 H Professional
- Despite their very high load capacity, these transport trolleys remain compact and lightweight.
- The redesigned steering unit features fewer rollers, allowing for a more compact design without compromising load capacity – made possible by advanced roller technology.
- The new, more compact construction and reduced number of rollers result in a noticeable weight reduction.
- By halving the roller width and doubling the number of rollers, steering movements are significantly improved and friction during cornering is greatly reduced.
- The mechanical pendulum mounting of the cassettes and axles ensures even load distribution across the rollers and the floor surface – eliminating the need for complex and failure-prone hydraulic compensation systems.
- All transport trolleys are delivered fully assembled and ready for immediate use.
JUNG transport trolleys are fitted with ball-bearing rollers for smooth and effortless movement. The rollers come standard with a low-wear tread.

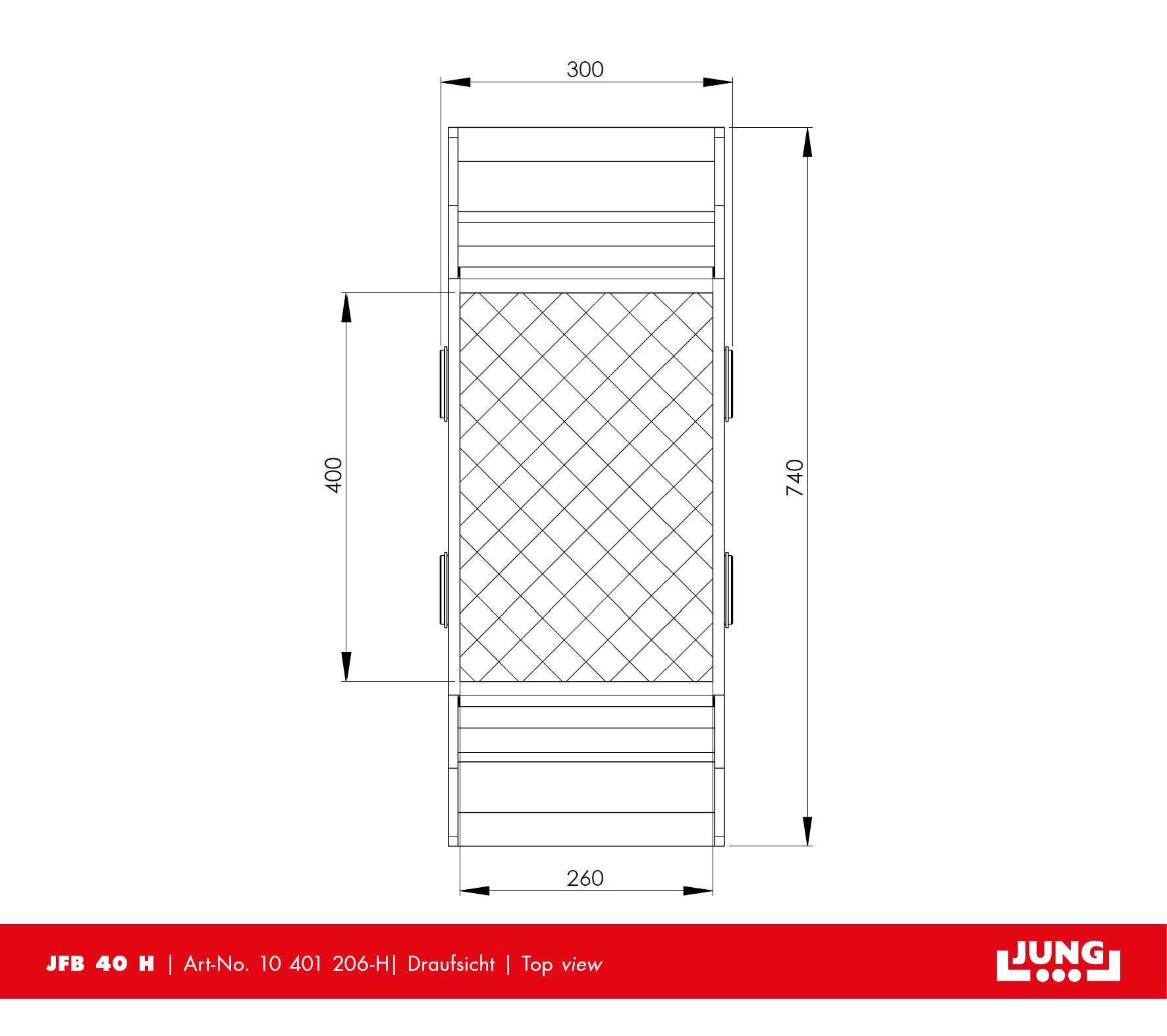

| Cassette dimensions (mm): | 740 x 300 |
|---|---|
| Cassettes adjustable from - to (mm): | 585 - 1 500 |
| Castor dimensions (Ø x l mm): | 200 x 85 |
| Connecting bar with joint (mm): | 2 x 1 540 |

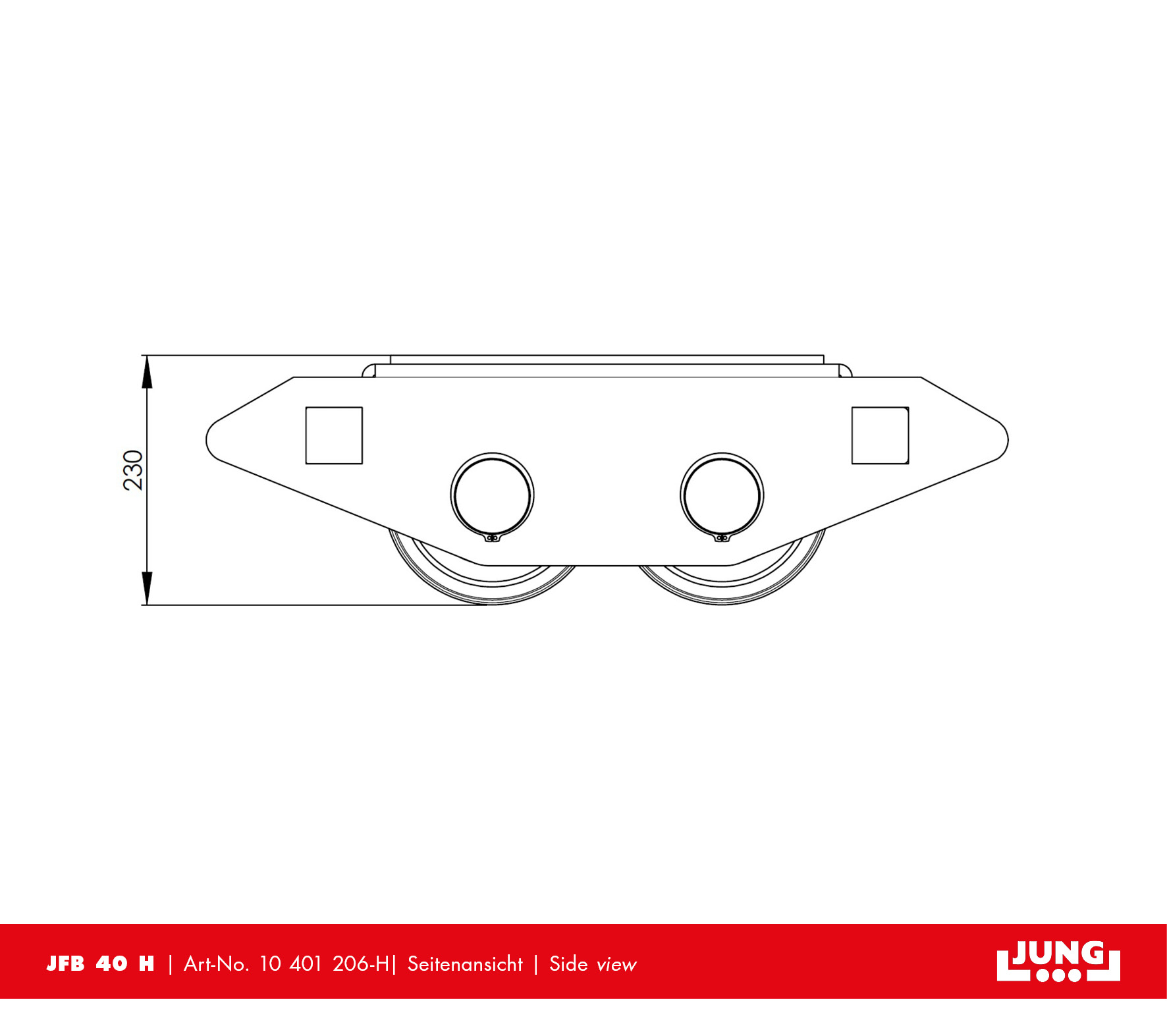

| Height (mm): | 230 |
| Load capacity (t): | 40 |
| Number of castors (Pieces): | 2 x 6 |
| Suppoting surface per cassette (mm): | 400 x 260 |
| Weight JUWAthan® (kg): | 270 |
