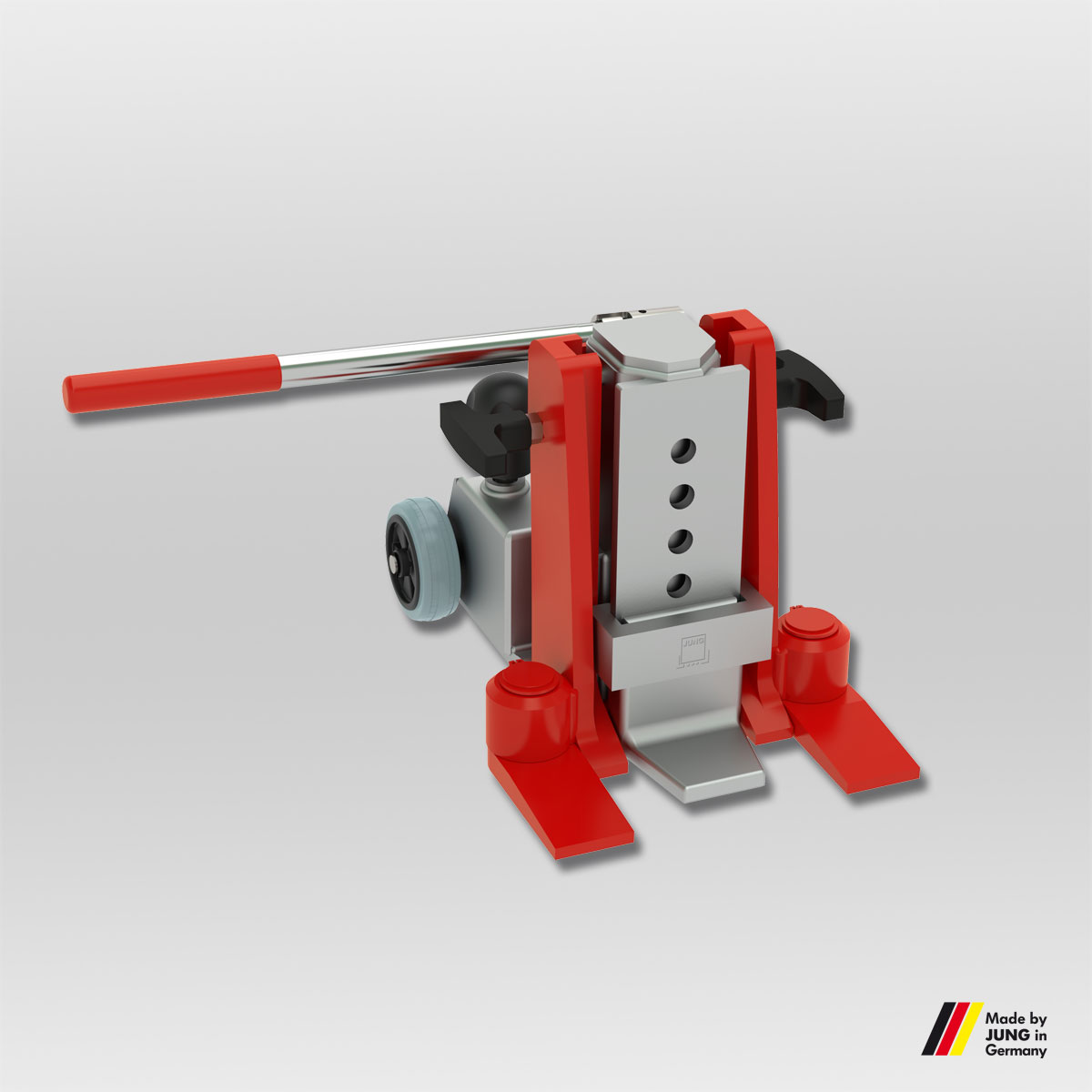

JH 6 G plus - hydraulic jack with integrated pump unit

Load capacity: 6 t
Stroke: 140 mm
With side handles and no standard handle

Art.-Nr. 01 060 102-G-G
- Hydraulic jacks

Advantages of jacks – Series JH G plus

  • Slide shoe design inside the guiding track prevents twisting of the piston inside the lifting cylinder. This guarantees better force distribution, less friction and reduced wear compared to conventional jacks.
  • Reduced maintenance costs due to easy change slide shoes and removable pump unit.
  • Extremely lightweight with high performance due to the use of highquality material and innovative design.
  • Continuous adjustment to the load due to swiveling safety toe. Secure stableness in every situation even in lifted position.
  • JH 15 / JH 20 G plus serial outfitted with fast stroke.
  • Die-forged steel toe provides impact resistance.

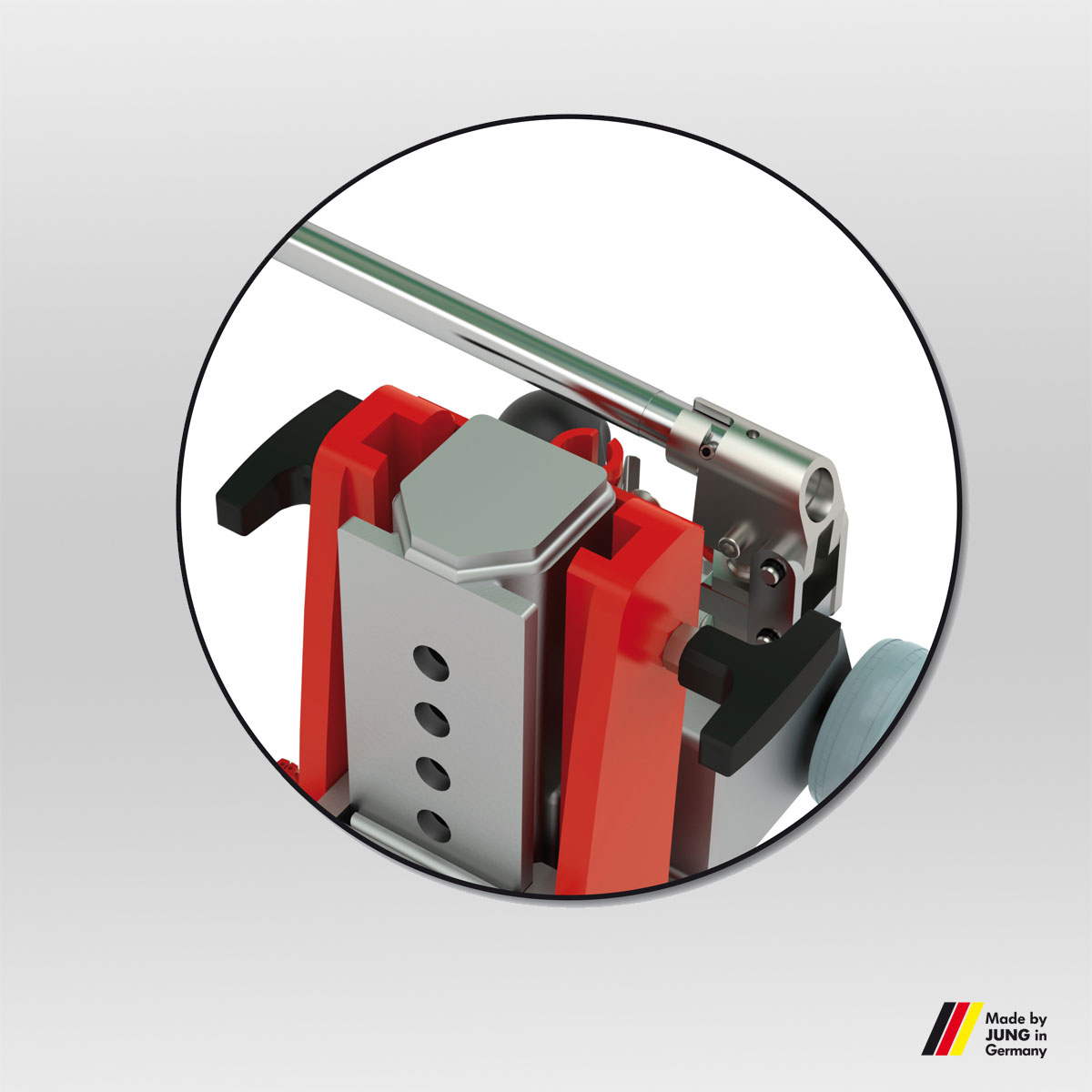

  • With additional side handles and no standard handle

Here you find an application video.

Produkt Video Datasheet
Technical data
Load capacity on top platekg6000
Minimum lift toe heightmm12
Maximum lift toe heightmm157
Lift toe adjustmentmm6 x 29
Top plate heightmm245
Toe width frontmm50
Toe depthmm50
Length feet in frontmm326
Length feet on sidemm311
Cylinder volumeL0,18
Technical drawing
  • JH 6 G plus Top view
  • JH 6 G plus Front view
  • JH 6 G plus Side view
