Hydraulic jack JH 15 G plus EX
High-quality jack from JUNG. The hydraulic lifting device JH 15 G plus EX lifts a load of 15 t and reaches a maximum lifting height of 175 mm.
without integrated pump unit
Load capacity: 15 t
Stroke: 175 mm
Load capacity: 15 t
Stroke: 175 mm
Product number:
11 615 106-G
Weight:
42 kg
Product information "Hydraulic jack JH 15 G plus EX"
Advantages of the hydraulic jack JH 15 G plus EX
- without integrated pump unit
- Integrated spring return retracts piston automatically on JH 15 G plus EX.
- Slide shoe design inside the guiding track prevents twisting of the piston inside the lifting cylinder. This guarantees better force distribution, less friction and reduced wear compared to conventional jacks.
- Reduced maintenance costs due to removable stroke unit and easy to change slide shoes.
- Extremely lightweight with high performance due to the use of highquality material and innovative design.
- Continuous adjustment to the load due to swiveling safety toe. Secure stableness in every situation even in lifted position.
| Cylinder volume (l): | 0,5 |
|---|---|
| Height (mm): | 310 |

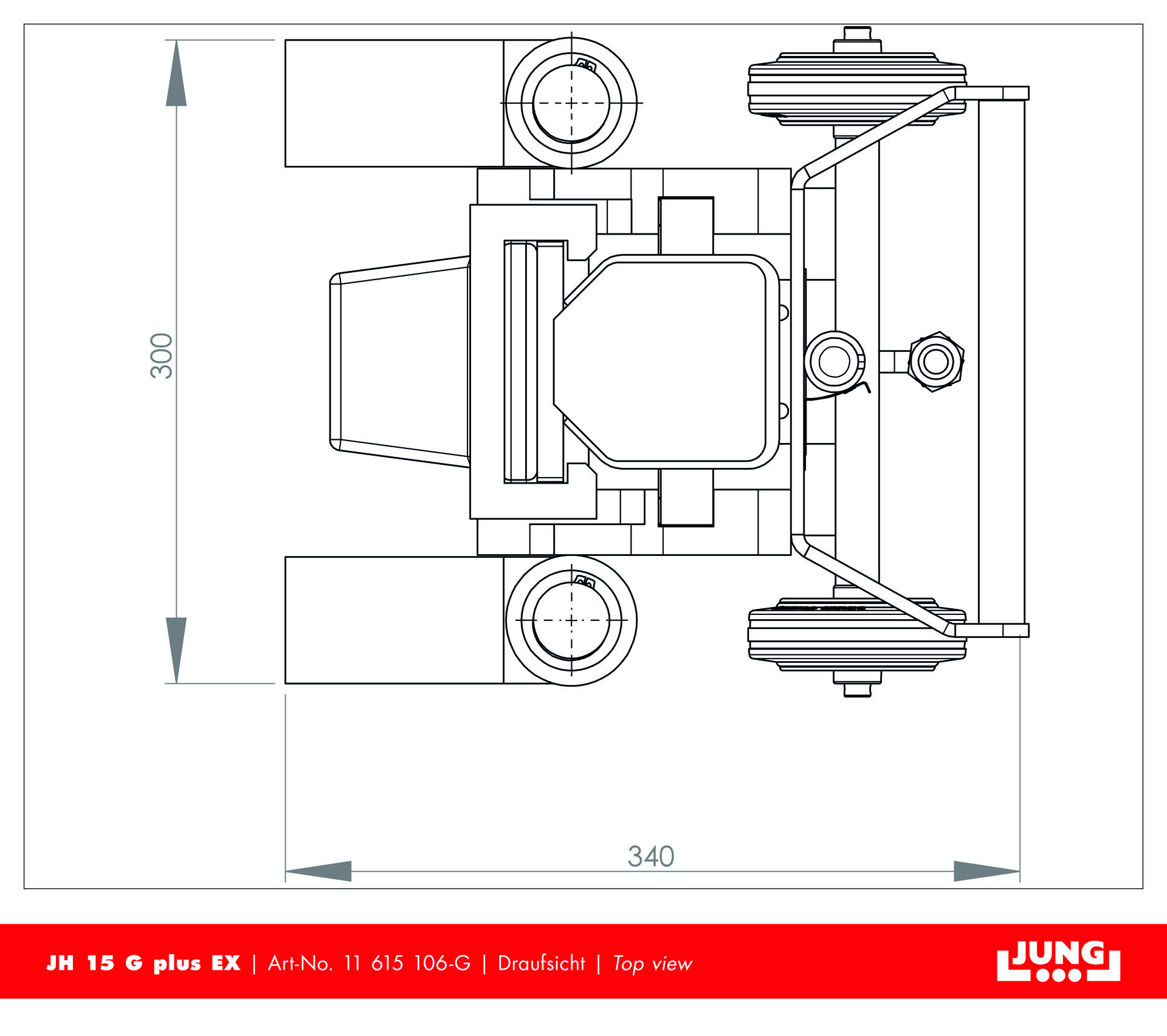

| Length feet in front (mm): | 340 |
| Length feet on side (mm): | 230 |

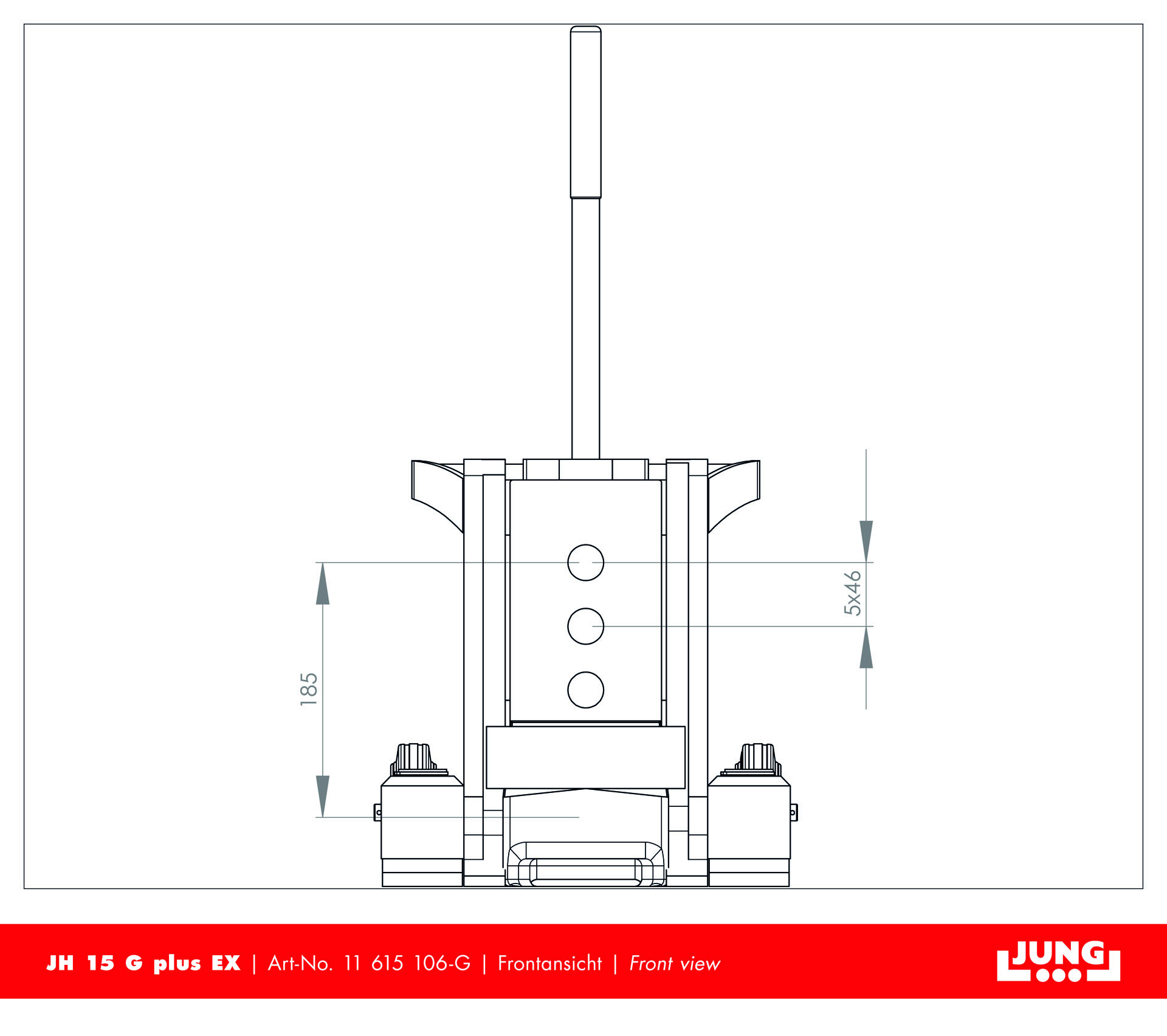

| Lift toe adjustment: | 5 x 46 |
| Load capacity on top plate (t): | 15 |

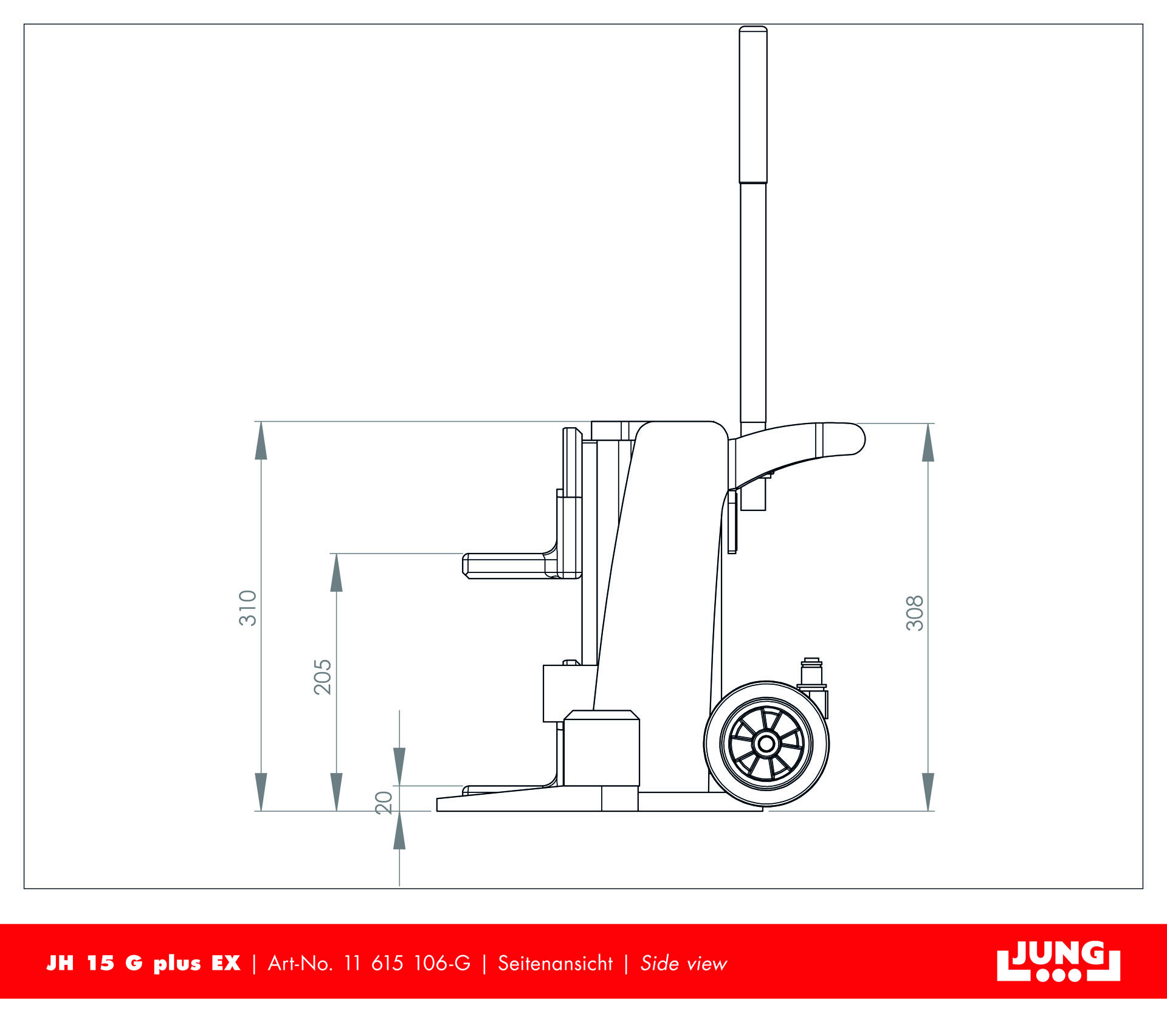

| Maximum lift toe height (mm): | 205 |
| Minimum lift toe height (mm): | 20 |
| Pump unit included: | Nein |
| Stroke (mm): | 175 |
| Toe depth (mm): | 64 |
| Toe width front (mm): | 80 |
| Top plate height (mm): | 310 |
| Width (mm): | 300 |
