JUNG Hebe- und Transporttechnik GmbH

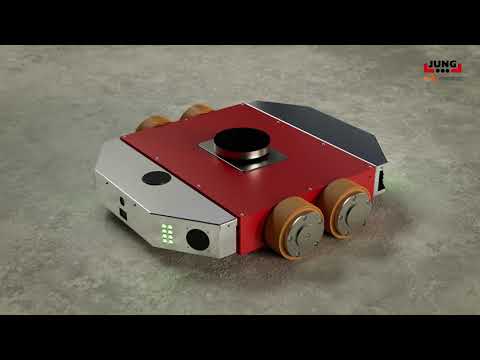

Transport trolley JLA-eForm 15/30 facelift
Electrically powered chassis for synchronized transport of heavy loads – intelligent, precise, and safe. Controlled via touchscreen.
Load capacity: 15 t
Height: 240 mm
Electric-powered transport trolley
Height: 240 mm
Electric-powered transport trolley
Product number:
24 015 100-H
Weight:
325 kg
Product information "Transport trolley JLA-eForm 15/30 facelift"

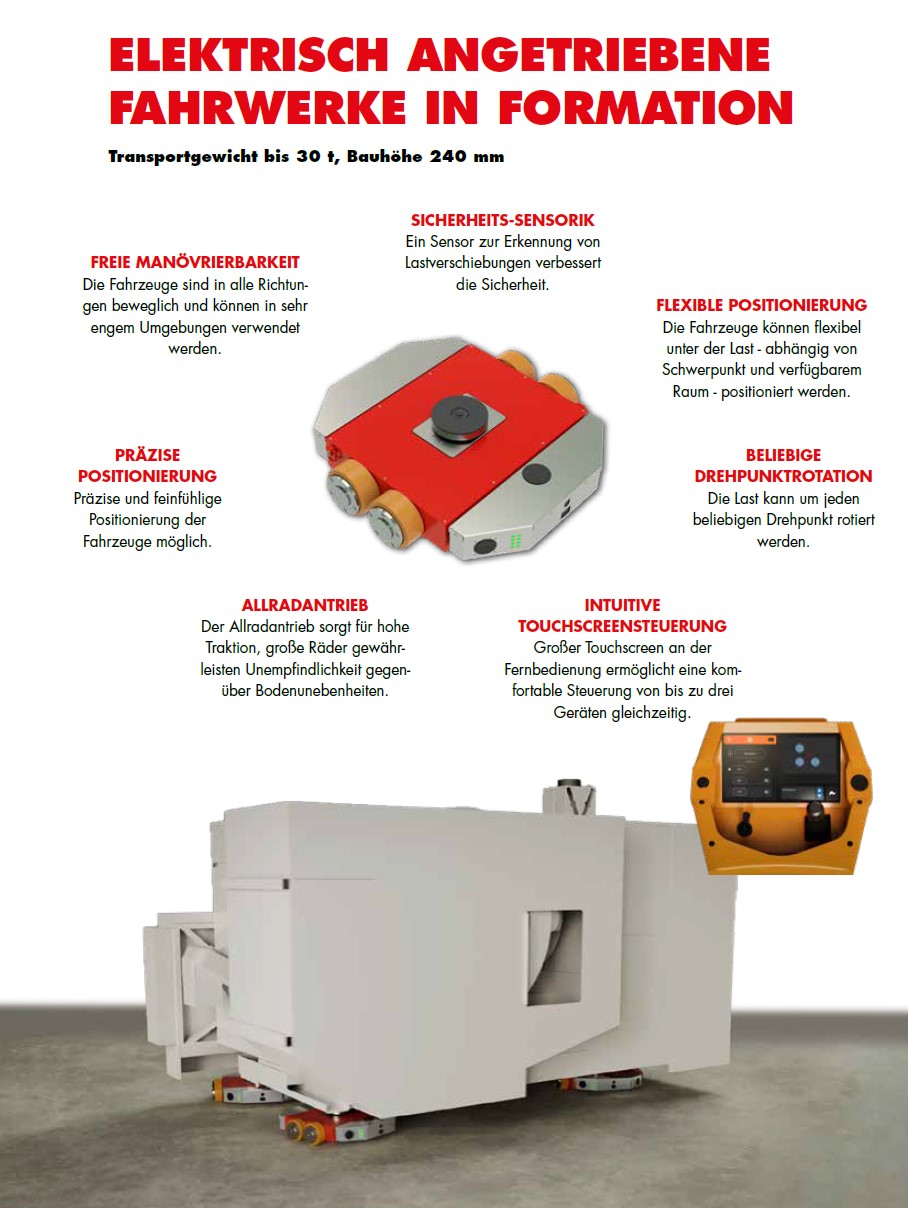

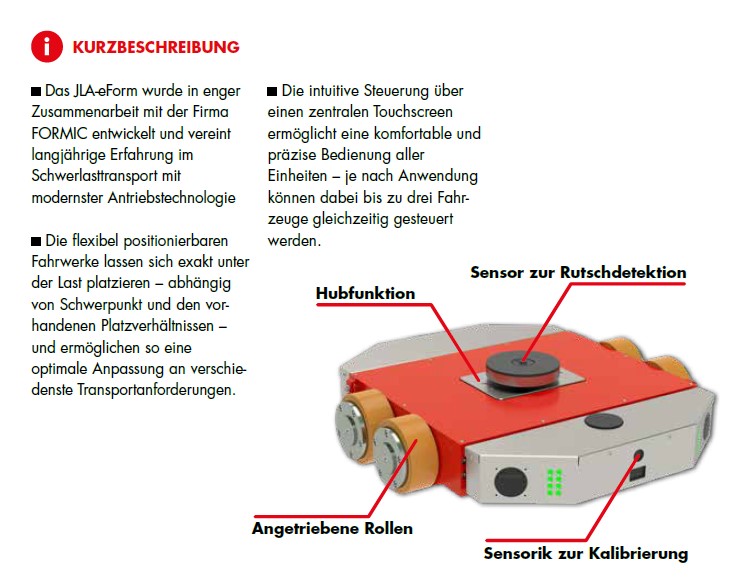

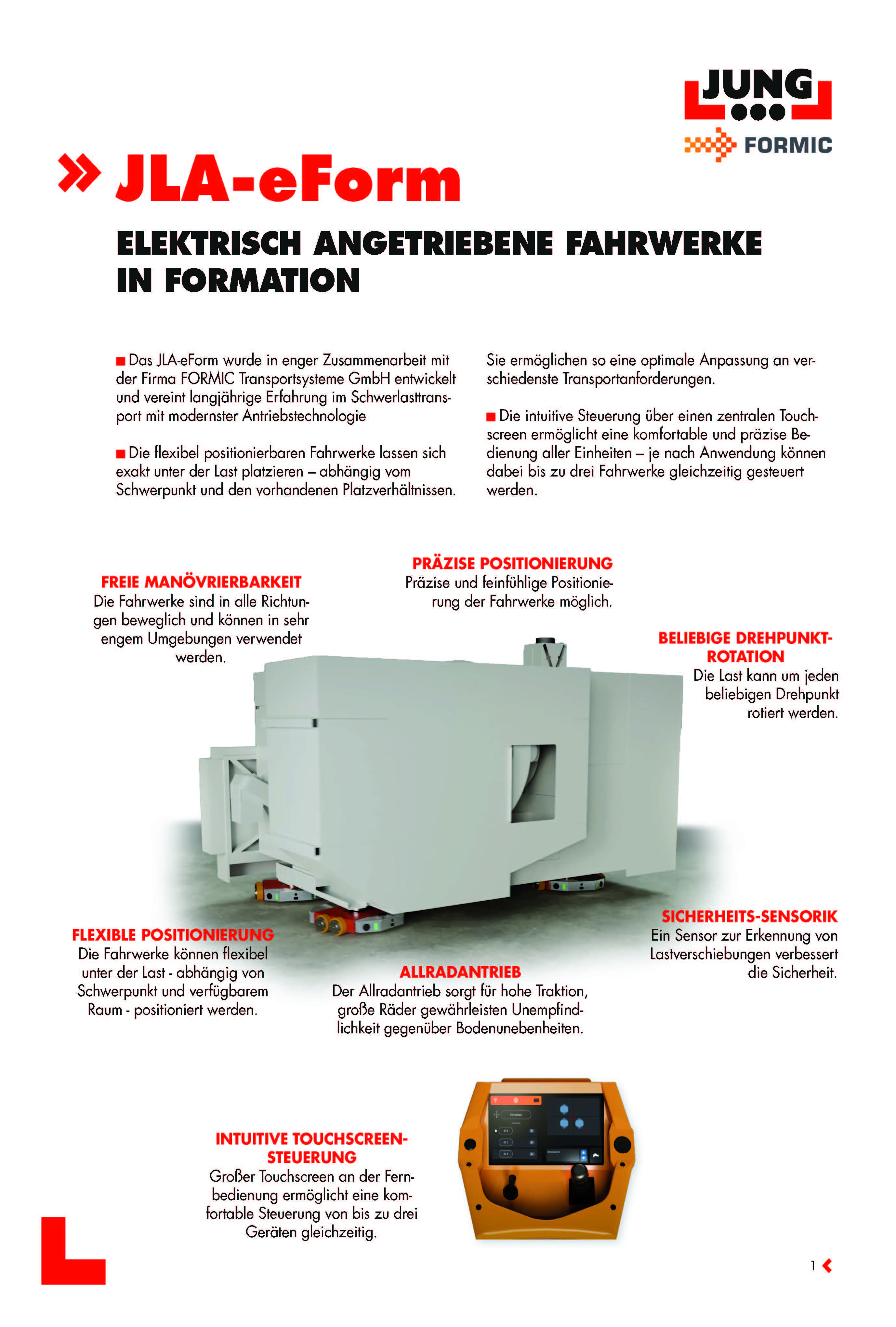

Advantages of the electric-powered transport trolleys JLA-eForm 15/30 H
- The load can be rotated around any desired pivot point, offering maximum flexibility in positioning.
- The trolleys can be positioned flexibly beneath the load and adapted to the center of gravity as well as the available space.
- An integrated sensor detects load shifts, enhancing transport safety.
- Control via a large touchscreen allows for comfortable and intuitive operation of up to three trolleys simultaneously.
- All-wheel drive ensures high traction and enables safe movement even on uneven surfaces.
- Long operating time – 4 to 5 hours at full load under optimal conditions.
- LiFePo battery technology

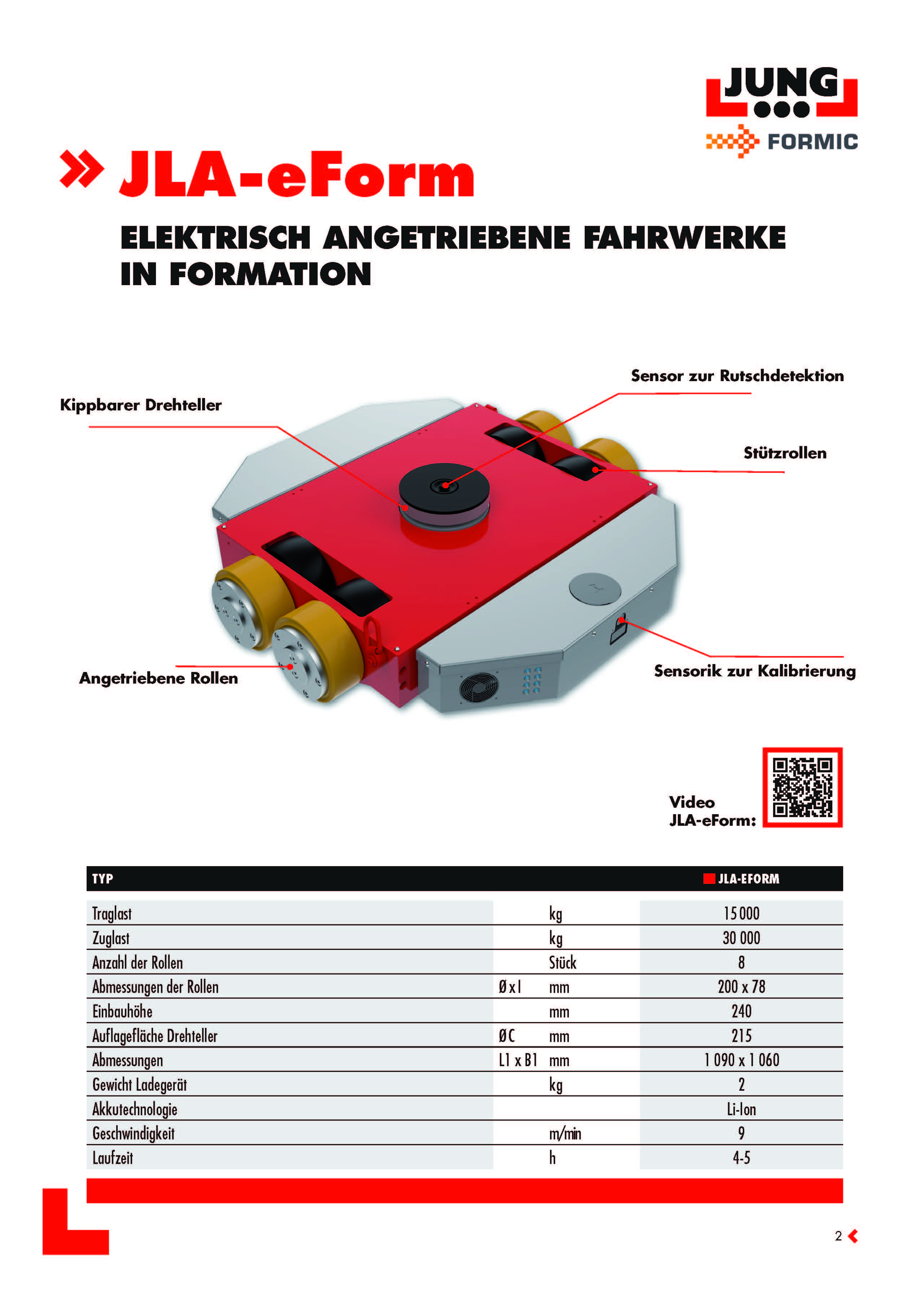

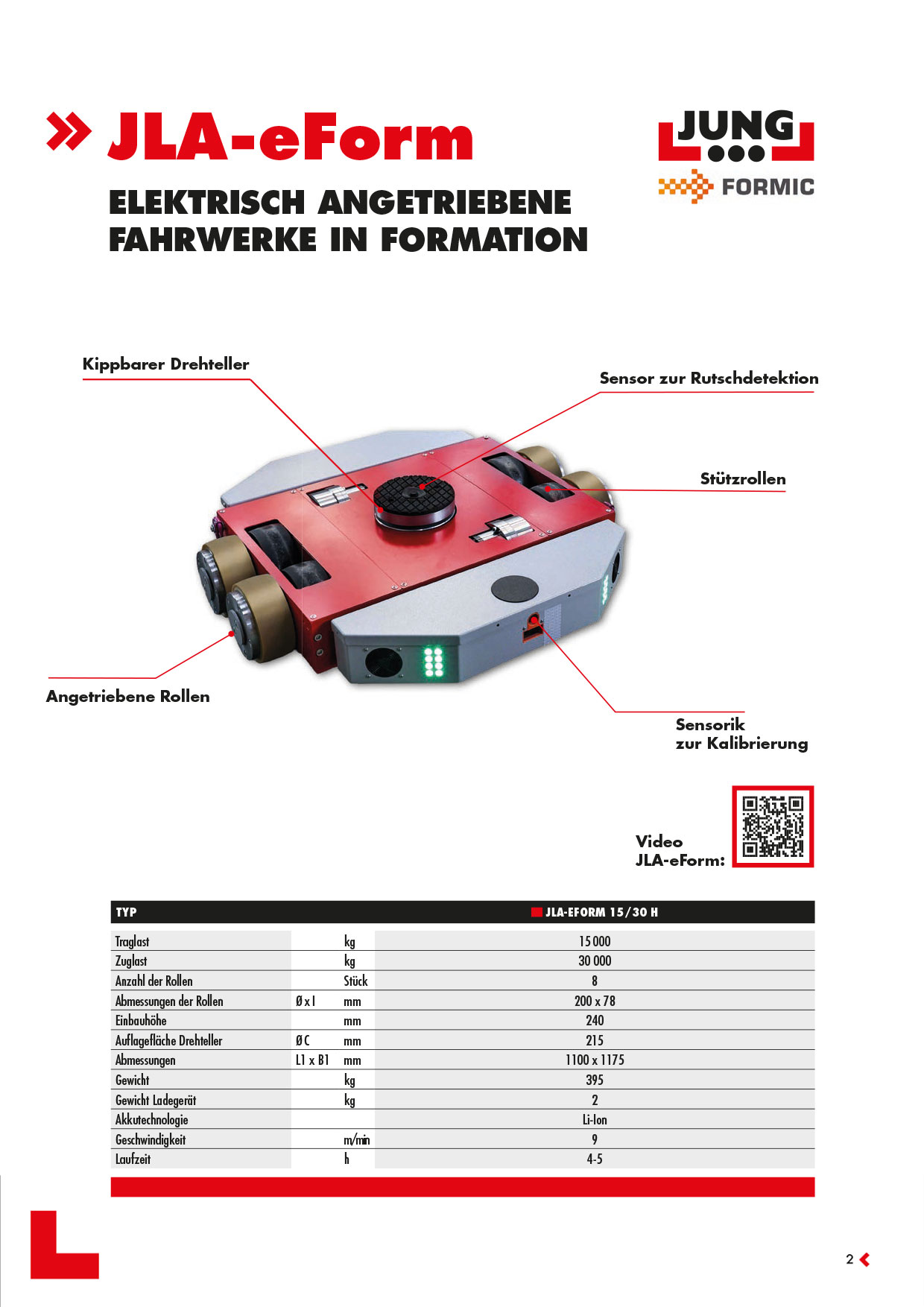

| Castor dimensions (Ø x l mm): | 200 x 78 |
|---|---|
| Dimensions (mm): | 1 060 x 1 025 |
| Height (mm): | 240 |
| Load capacity (t): | 15 |
| Number of castors (Pieces): | 4 |
| Operational time (h): | 4 - 5 |
| Pulling capacity (t): | 30 |
| Speed (m/min): | 9 |
| Stroke (mm): | 50 |
| Supporting surface of turnable Ø (mm): | 215 |
| Weight (kg): | 350 |
| Weight charger (kg): | 2 |
