JUNG Hebe- und Transporttechnik GmbH

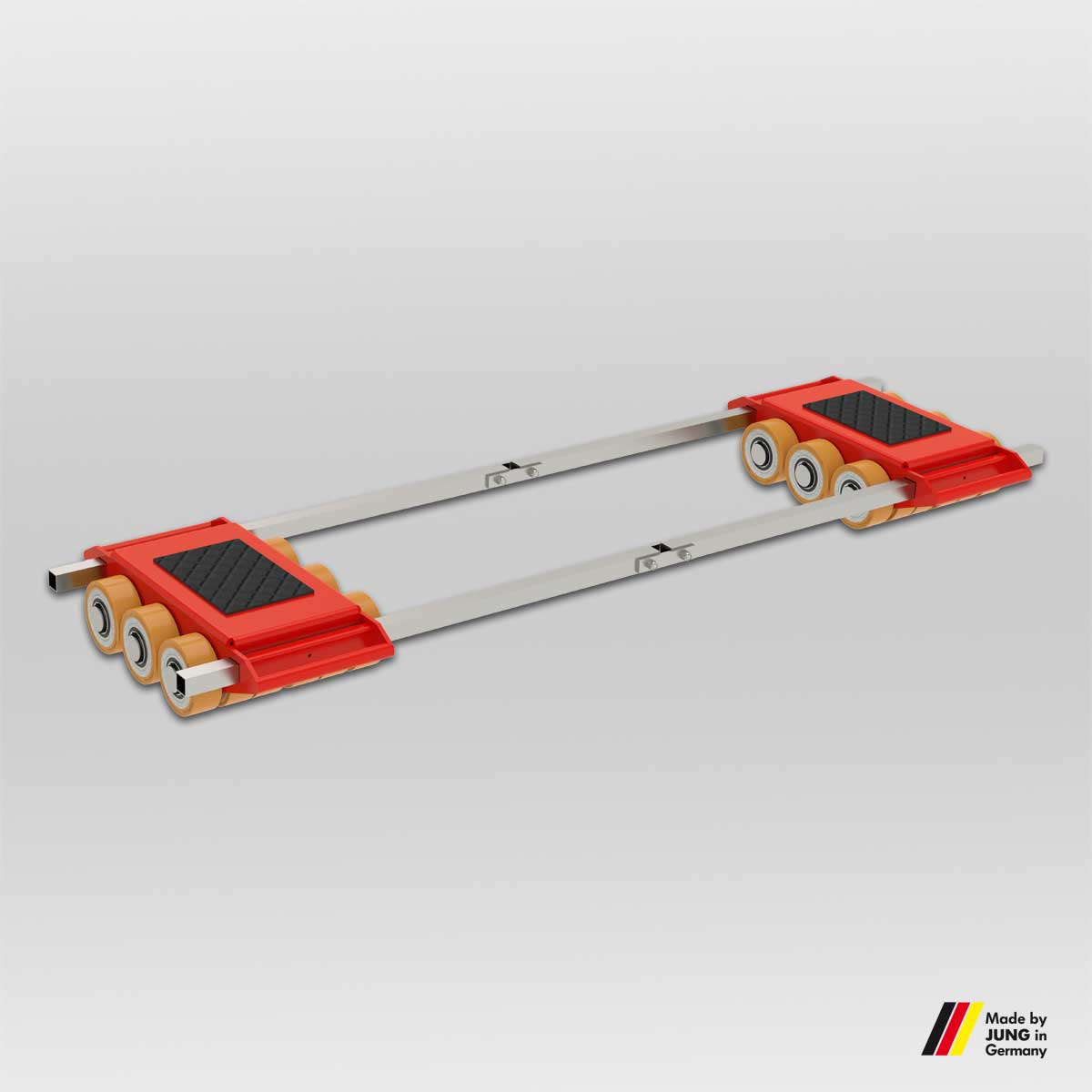

Transport trolley JFB 120 H Professional - NEW
Power and stability - the JLB 40 H transport trolley from JUNG can lift loads of up to 40 t with an installation height of 230 mm.
Load capacity: 120 t (in a set 200 t*)
Height: 240 mm
Transport trolleys series H professional
*) Set consisting of JL 80 H + JFB 120 H
Height: 240 mm
Transport trolleys series H professional
*) Set consisting of JL 80 H + JFB 120 H
Product number:
10 913 206-H
Weight:
646 kg
Product information "Transport trolley JFB 120 H Professional - NEW"
Features of the JUNG Transport trolleys JFB 120 H Professional
- Despite their high load capacity, the transport trolleys feature a compact and weight-optimized design.
- The newly developed trolley with a reduced number of rollers enables a more compact construction without compromising load capacity – made possible by the use of advanced roller technology.
- The reduced number and optimized arrangement of rollers result in significant weight savings.
- The combination of halved roller width and doubled roller quantity significantly improves maneuverability and greatly reduces frictional forces during cornering.
- A mechanical pendulum suspension of the cassettes or axles ensures even load distribution across all rollers and the ground surface, eliminating the need for a hydraulic leveling system.
- The tank rollers are delivered fully pre-assembled and are ready for immediate use without additional installation effort.
JUNG transport trolleys are fitted with ball-bearing rollers for smooth and effortless movement. The rollers come standard with a low-wear tread.

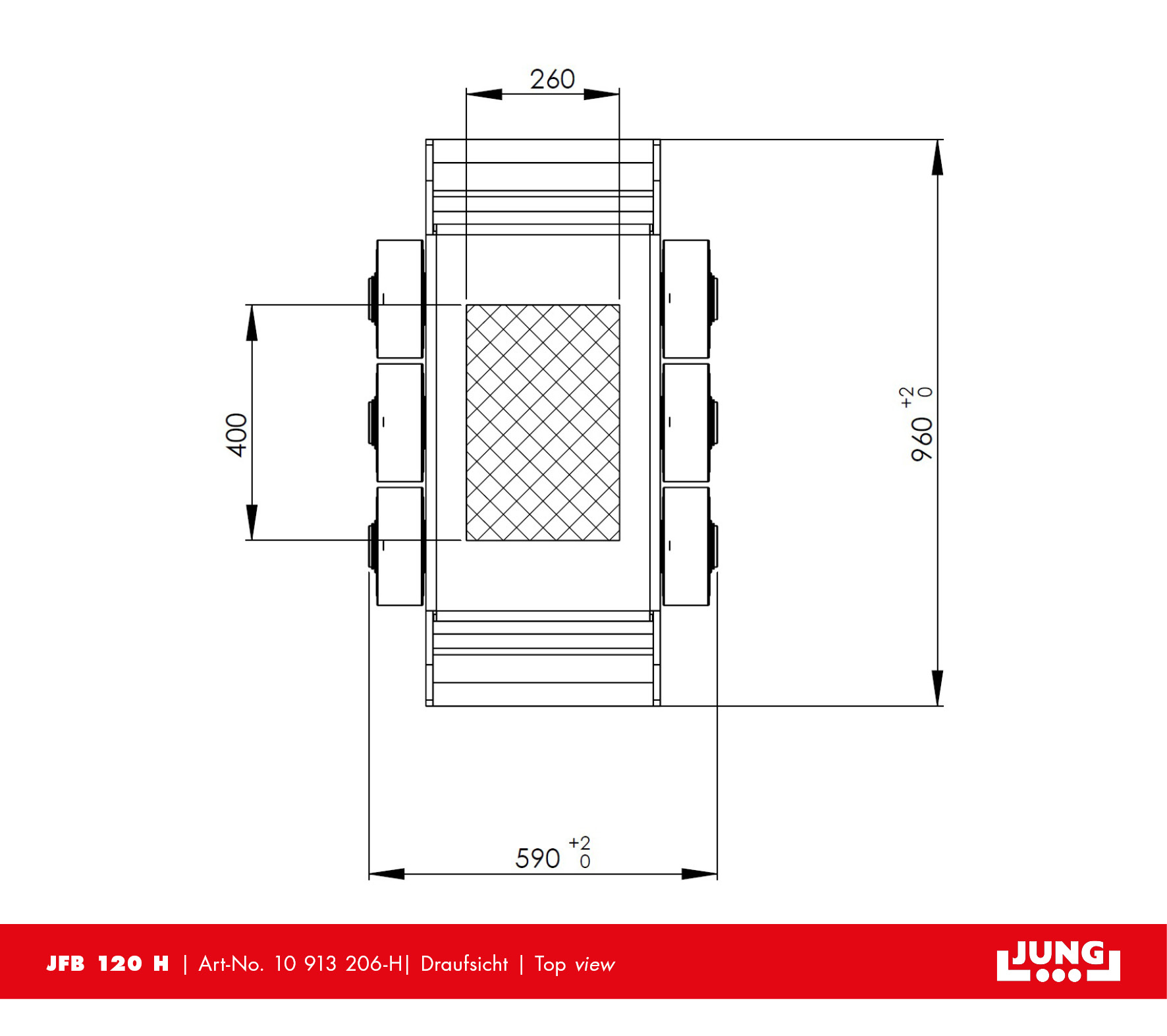

| Cassette dimensions (mm): | 960 x 590 |
|---|---|

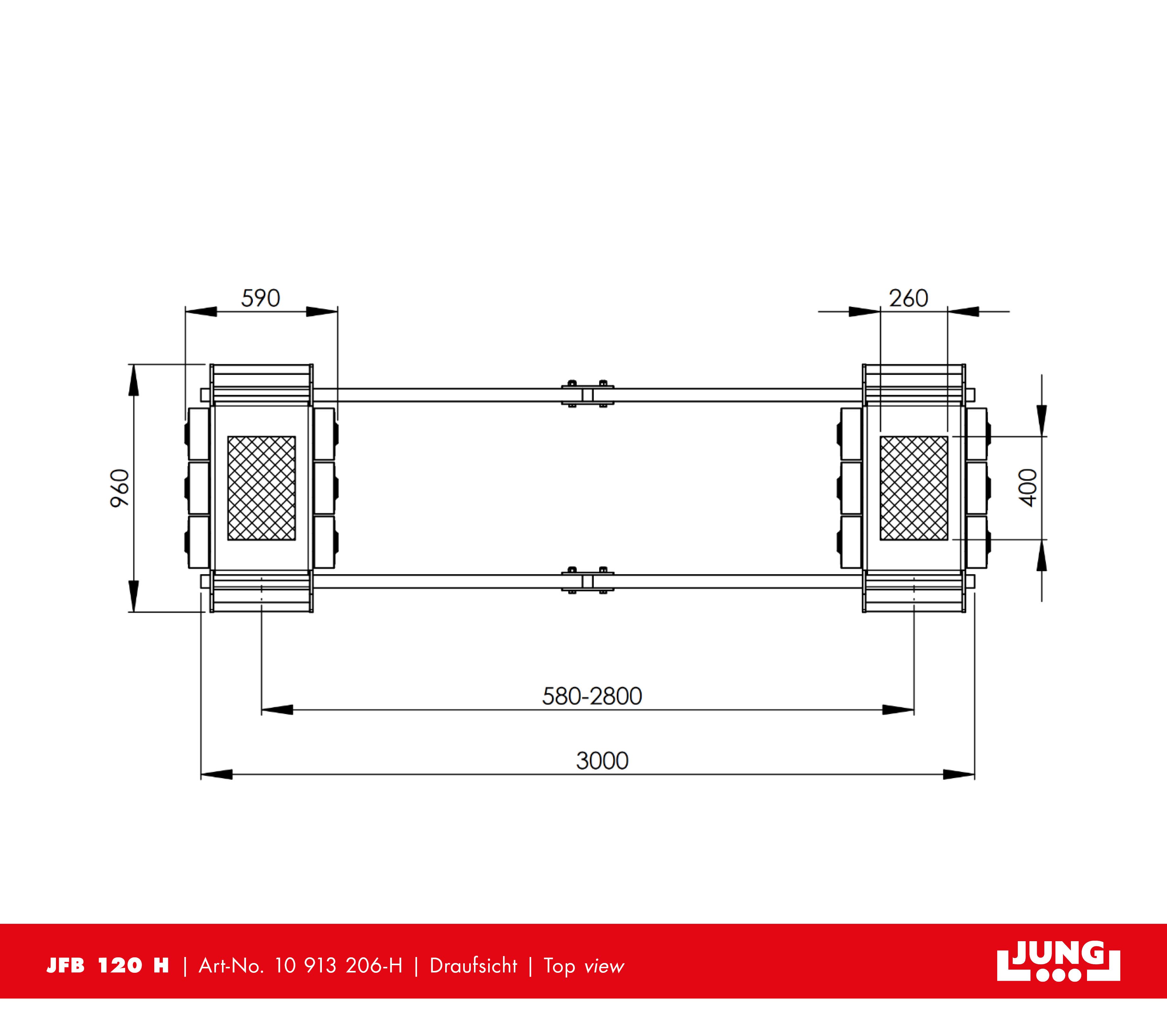

| Cassettes adjustable from - to (mm): | 580 x 2 800 |

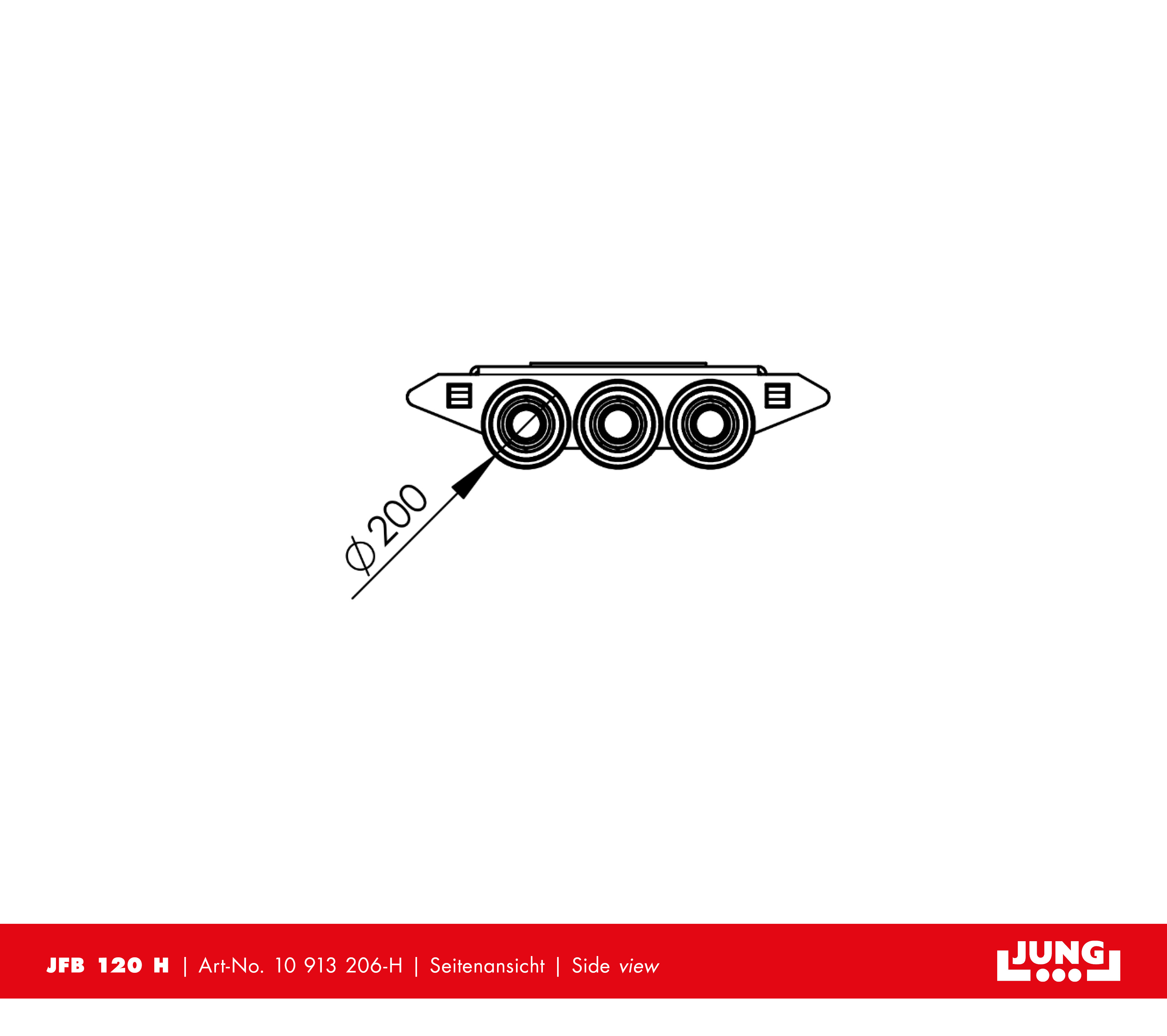

| Castor dimensions (Ø x l mm): | 200 x 85 |
| Connecting bar with joint (mm): | 2 x 3 000 |

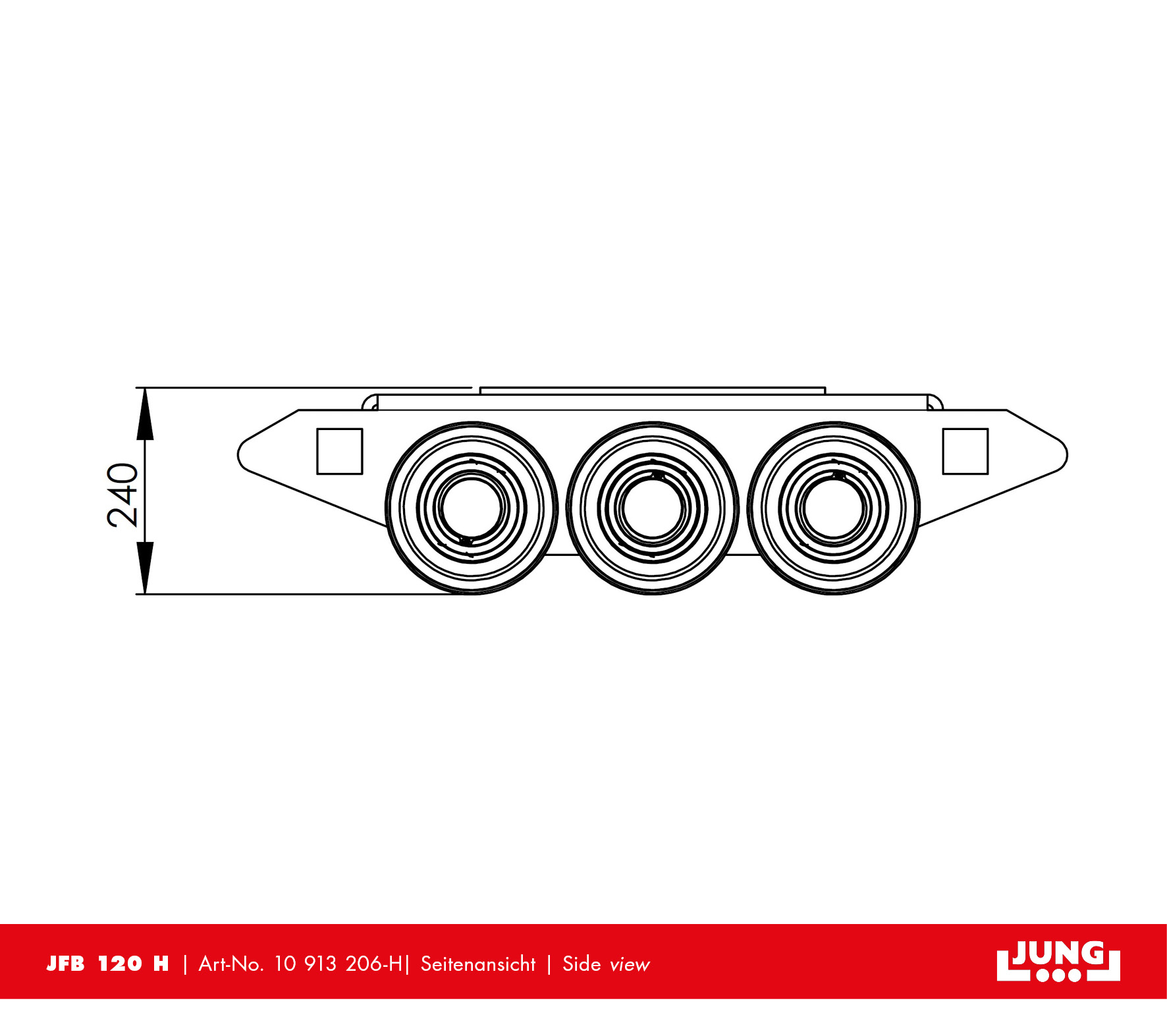

| Height (mm): | 240 |
| Number of castors (Pieces): | 2 x 18 |
| Suppoting surface per cassette (mm): | 400 x 260 |
| Weight JUWAthan® (kg): | 646 |
