Revolving transport trolley JKB 4 Set

Agile and powerful revolving transport trolley from JUNG. The JKB 4 K transport trolley set transports loads up to 8 t with an installation height of 110 mm.

with JUWAthan castors
Load capacity: 2 x 4 t
Height: 110 mm

Price on request

Prices incl. VAT plus shipping costs

Available

Request an offer

PDF-Datasheet

Product number: 14 041 085-DVu

Weight: 76 kg

Product information "Revolving transport trolley JKB 4 Set "

Qualities of revolving transport trolley set JKB 4 K with JUWAthan plus castors

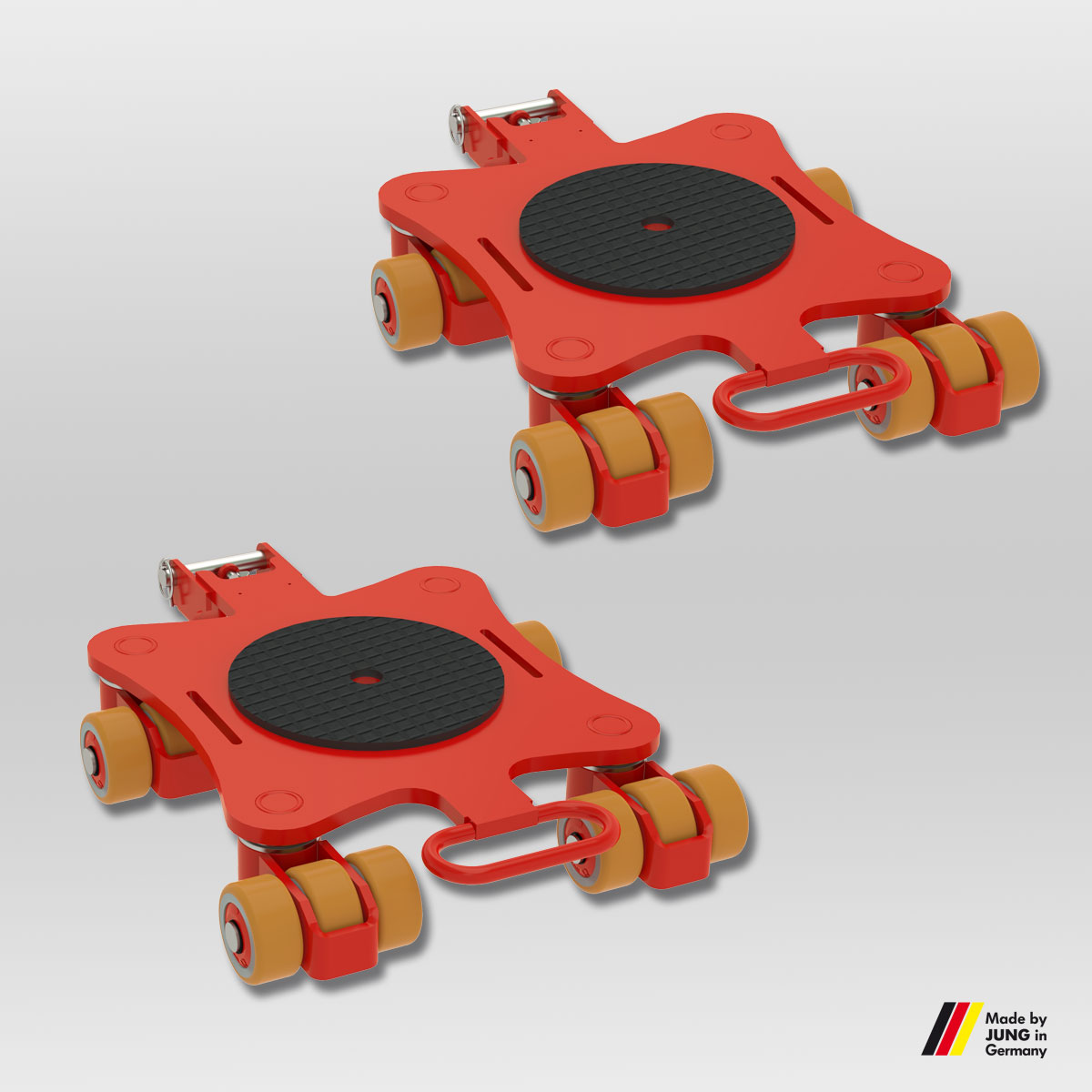

The set consists of 2 JKB 43 K rotating dollies.
Optional connecting bars can be fixed without tools by clamping down on adapter.
High load capacity at low weight.
Bearing supported swiveling castors allow 360° maneuverability.
Mix and match revolving trolleys with transport trolleys: JKB 4 K has same height as transport trolleys series K.
The JKB 4 K rotation trolleys, with an installation height of only 110 mm*, is suitable for all steering and transport trolleys of the K series.
Unrivalled: The double roller system reduces rolling and turning resistance to a minimum.
Using the slots in the platform, the trolley JKB 4 K can be affixed to the load with standard tiedown belts.
In addition, all the rotational trolleys have a platform center hole to allow attachement to the load.
For choosing the adequate revolving trolley we recommend a load of two-third of the maximum capacity. This will be the most advantageous compromise between payload, ergonomics and handling of the devices.
Pulling handle and connecting bars available as accesories.
Inspected according to technical regulation ANSI ⁄ ASME (USA)

*) Due to technical changes, there may be tolerances of up to + 4.5 mm in the installation height since 2014.

Cassette dimensions (mm):	690 x 475
Castor dimensions (Ø x l mm):	85 x 43
Consist of:	2 x JKB 4 K
Height (mm):	110
Load capacity (t):	8
Number of castors (Pieces):	2 x 12
Suppoting surface per cassette (mm):	250
Weight JUWAthan® (kg):	76
