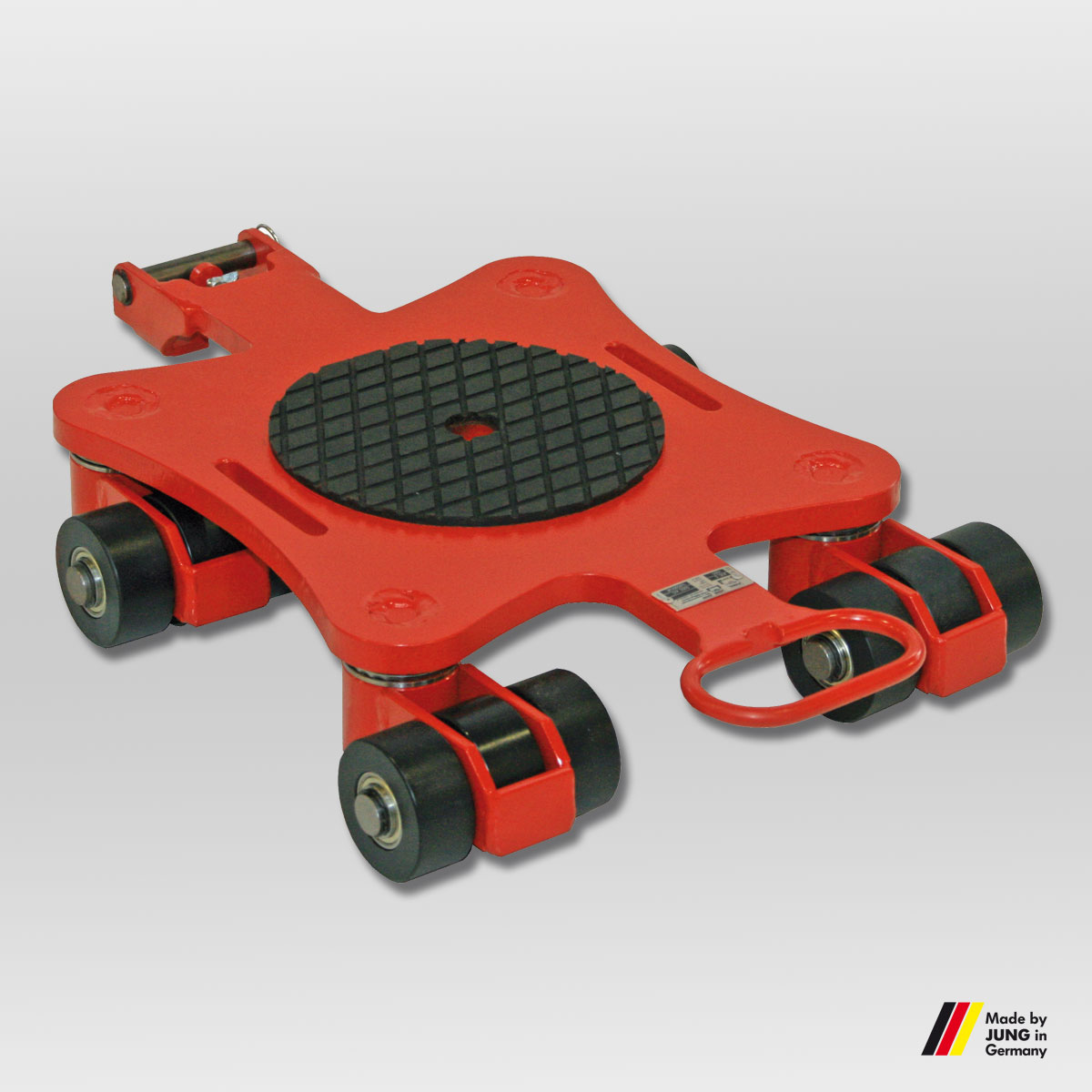

Revolving transport trolley JKB 4 K
Agile and powerful revolving transport trolley from JUNG. The JKB 4 K transport trolley transports loads up to 4 t with an installation height of 110 mm.
with JUWAmid castors
Load capacity: 4 t
Height: 110 mm
Load capacity: 4 t
Height: 110 mm
Product number:
14 041 085-P
Weight:
38 kg
Product information "Revolving transport trolley JKB 4 K "
Advantages of the revolving transport trolley JKB 4 K with JUWAmit castors
- Optional connecting bars can be fixed without tools by clamping down on adapter.
- High load capacity at low weight.
- The wheel assemblies are equipped with ball bearing swivel casters that allow for a 360-degree rotation.
- Mix and match revolving trolleys with transport trolleys:With an installation height of only 110 mm*, the rotating transport trolley JKB 4 is compatible with all steering and transport undercarriages of the K series.
- All products are also available in a set of two with price advantage.
- Unrivalled: The double roller system reduces rolling and turning resistance to a minimum.
- Using the slots in the platform, the rotational trolleys JKB 4 - 8 can be affixed to the load with standard tiedown belts.
- In addition, all the trolleys have a platform center hole to allow attachement to the load.
- For choosing the adequate revolving trolley we recommend a load of two-third of the maximum capacity. This will be the most advantageous compromise between payload, ergonomics and handling of the devices.
- Drawbars and connecting rods are available as accessories in various lengths.
- Inspected according to technical regulation ANSI ⁄ ASME (USA)
It is recommended to select a payload of approximately 2/3 of the maximum load capacity to achieve the best compromise between payload, ergonomics, and handling of the equipment.
*) Due to technical changes, there may be tolerances of up to + 4.5 mm in the installation height since 2014.
*) Due to technical changes, there may be tolerances of up to + 4.5 mm in the installation height since 2014.
| Cassette dimensions (mm): | 690 x 475 |
|---|---|
| Castor dimensions (Ø x l mm): | 85 x 43 |
| Consist of: | 1 x JKB 4 K |
| Height (mm): | 110 |
| Load capacity (t): | 4 |
| Number of castors (Pieces): | 12 |
| Suppoting surface per cassette (mm): | 250 |
| Weight JUWAmid (kg): | 38 |
