Revolving transport trolley JKB 14 G with locking mechanism

JUNG Hebe- und Transporttechnik GmbH

Revolving transport trolley JKB 14 G with locking mechanism

Agile and powerful revolving transport trolley from JUNG. The JKB 14 G transport trolley transports loads up to 14 t with an installation height of 180 mm.

with locking mechanism and JUWAthan castors
Load capacity: 14 t
Height: 180 mm

Price on request

Prices incl. VAT plus shipping costs

Available

Request an offer

PDF-Datasheet

Product number: 14 144 140-Vu

Weight: 148 kg

Product information "Revolving transport trolley JKB 14 G with locking mechanism"

Advantages of the revolving transport trolleyJKB 14 G with JUWAthan

High load capacity at low weight.

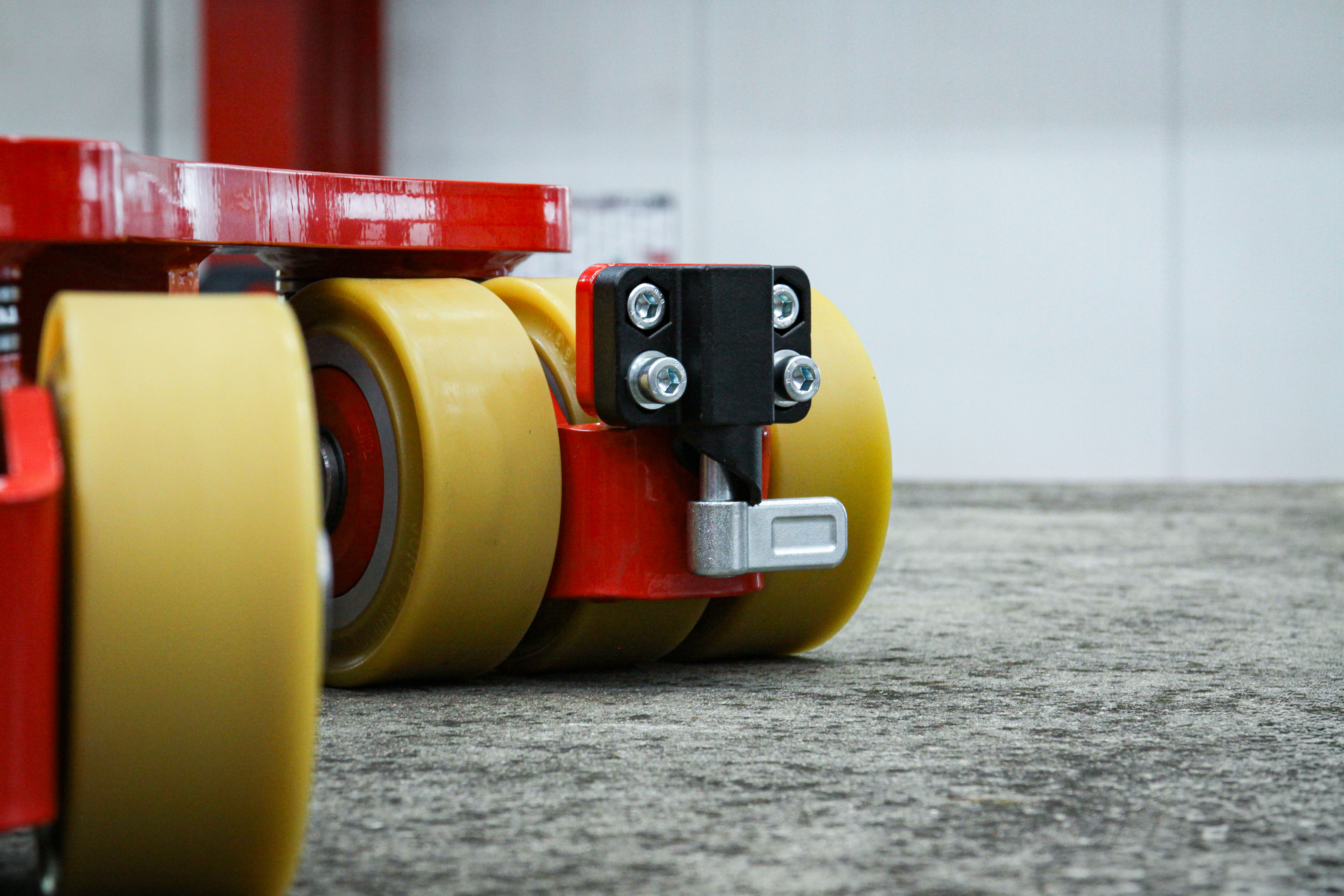

With locking mechanism: for fixing the castors in place so that the track is maintained even on uneven floors or when changing direction. The directional lock can be secured or released under load. Can be used for electrically powered chassis as a trailer or steering wheel, as the castors run true to track.
Bearing supported swiveling castors allow 360° maneuverability.
JKB 14 G has same hight as transport trolleys series G.
Optional connecting bars can be offered up to 3 m length.
All products are also available in a set of two with price advantage.
The narrow castors reduce rolling and turning resistance to a minimum.
In addition, all the rotational trolleys have a platform center hole to allow attachement to the load.
For choosing the adequate revolving trolley we recommend a load of two-third oft he maximum capacity. This will be the most advantageous compromise between payload, ergonomics and handling of the devices.
Pulling handle and connecting bars available as accesories.

Cassette dimensions (mm):	975 x 720
Castor dimensions (Ø x l mm):	140 x 59
Consist of:	1 x JKB 14 G
Height (mm):	180
Load capacity (t):	14
Number of castors (Pieces):	12
Suppoting surface per cassette (mm):	250
Weight JUWAthan® (kg):	152
