Revolving transport trolley JKB 10 G with locking mechanism

JUNG Hebe- und Transporttechnik GmbH

Revolving transport trolley JKB 10 G with locking mechanism

Agile and powerful revolving transport trolley from JUNG. The JKB 10 G transport trolley transports loads up to 10 t with an installation height of 180 mm and locking mechanism.

with locking mechanism and JUWAthan castors
Load capacity: 10 t
Height: 180 mm

Price on request

Prices incl. VAT plus shipping costs

Available

Request an offer

PDF-Datasheet

Product number: 14 104 140-Vu

Weight: 127 kg

Product information "Revolving transport trolley JKB 10 G with locking mechanism "

Advantages of the revolving transport trolleysJKB 10 G with JUWAthan castors

High load capacity at low weight.
With locking mechanism: for fixing the castors in place so that the track is maintained even on uneven floors or when changing direction. The directional lock can be secured or released under load. Can be used for electrically powered chassis as a trailer or steering wheel, as the castors run true to track.
Bearing supported swiveling castors allow 360° maneuverability.
JKB 10 has same height as transport trolleys series G
All products are also available in a set of two with price advantage.
Unrivalled: The narrow castors reduce rolling and turning resistance to a minimum.
In addition, all the trolleys have a platform center hole to allow attachement to the load.
For choosing the adequate revolving trolley we recommend a load of two-third of the maximum capacity. This will be the most advantageous compromise between payload, ergonomics and handling of the devices.
Pulling handle and connecting bars available as accesories.
Inspected according to technical regulation ANSI ⁄ ASME (USA)

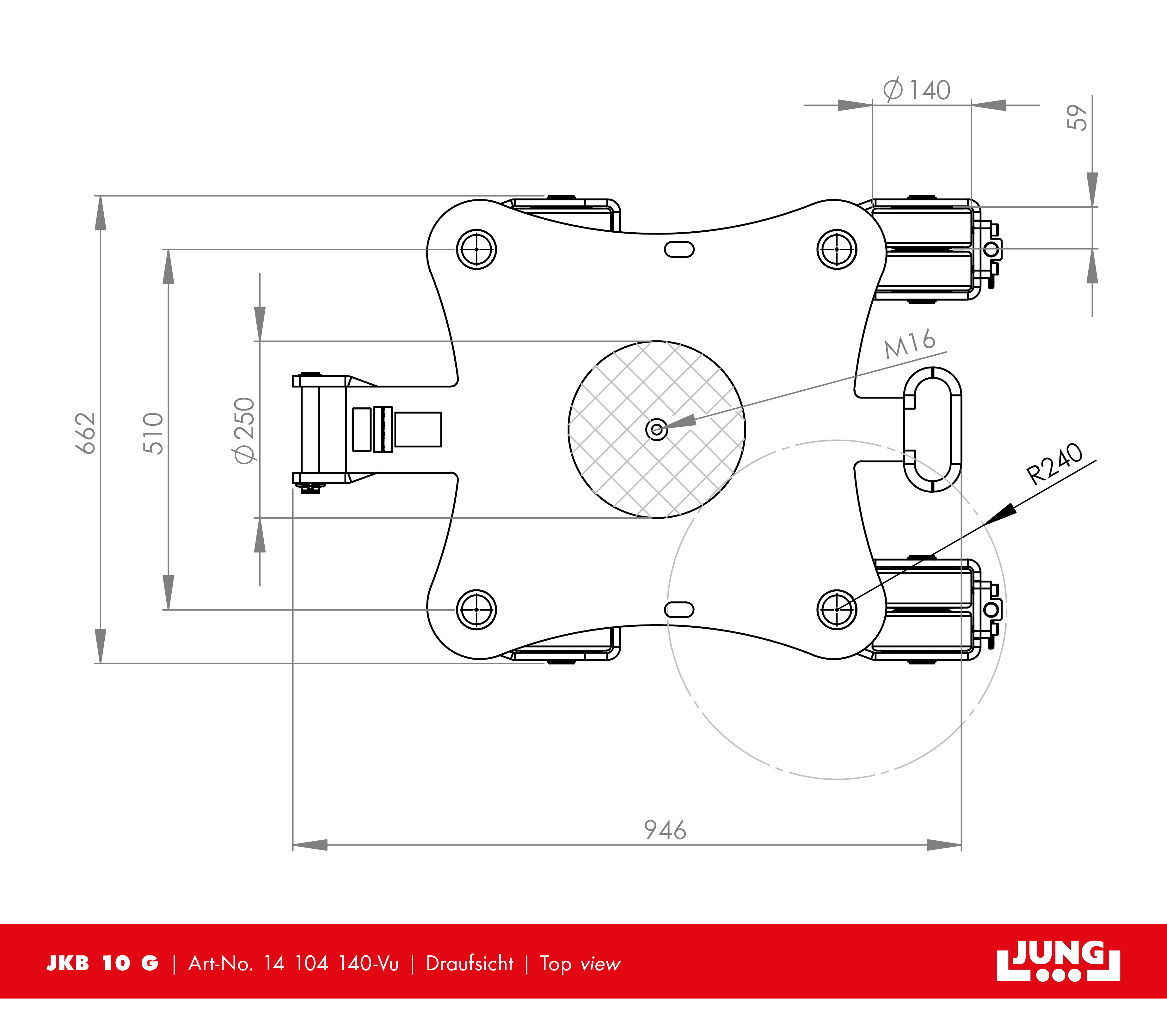

Cassette dimensions (mm):	975 x 665
Castor dimensions (Ø x l mm):	140 x 59
Consist of:	1 x JKB 10 G

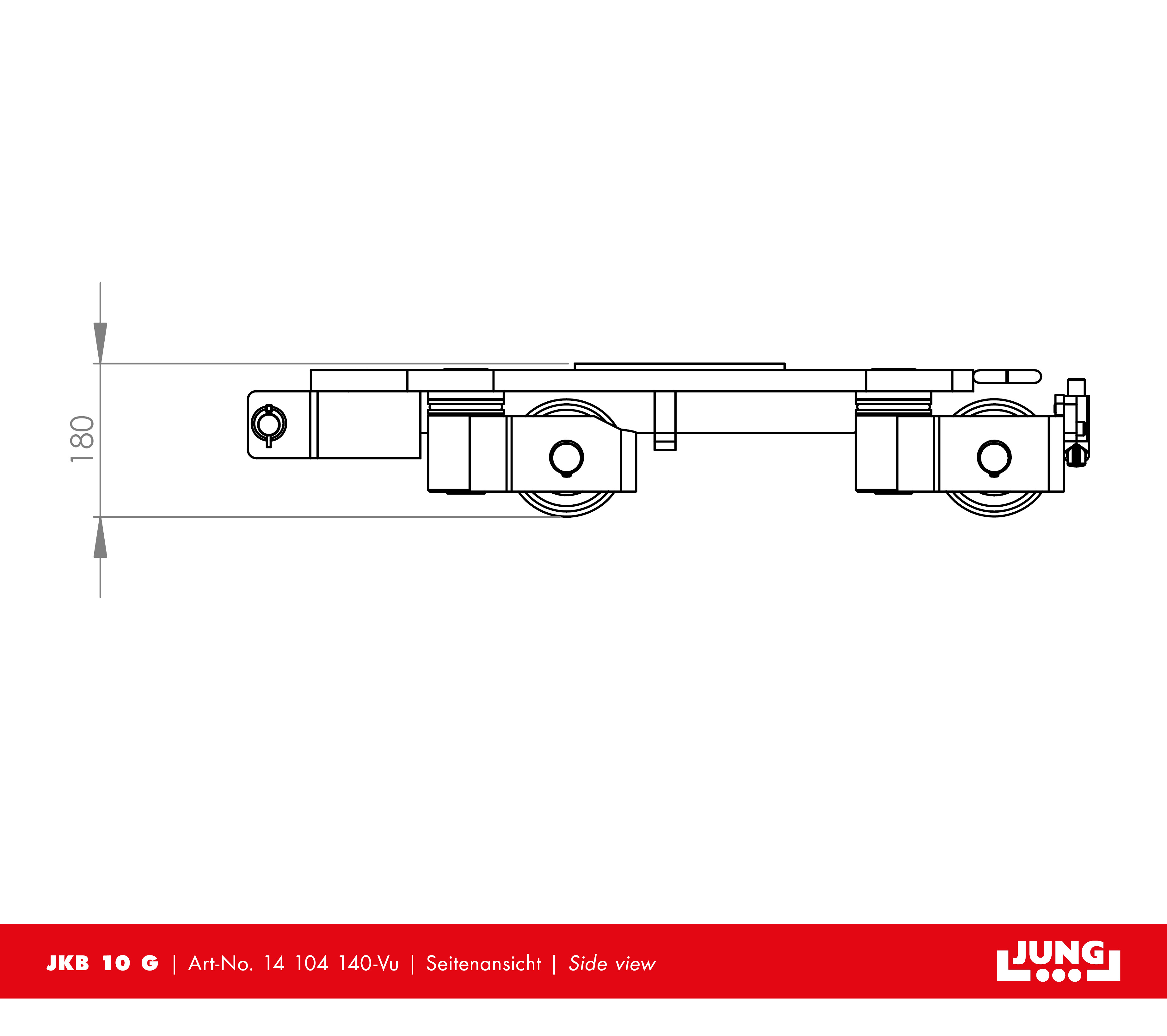

Height (mm):	180
Load capacity (t):	10
Number of castors (Pieces):	8
Suppoting surface per cassette (mm):	250
Weight JUWAthan® (kg):	127
